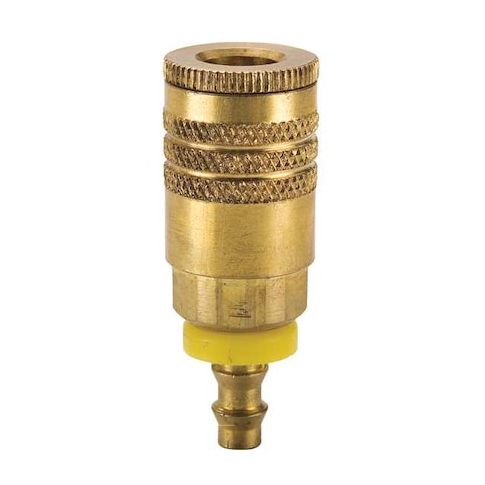

Coupler Body, Brass, Push On, 25 cfm MPN:B50-3BP
Streamline your pneumatic system with the PARKER B50-3BP Coupler Body. This brass push-to-connect coupling allows for rapid and tool-free connection and disconnection of hoses, reducing downtime and increasing efficiency. Suitable for pneumatic applications, it features a push-to-connect locking mechanism and includes a tubular valve to control air flow. Compatible with 1/4 inch inner diameter hoses, it's ideal for applications such as air tools, pneumatic cylinders, and fluid transfer systems. With a maximum flow rate of 25 cfm and a rated temperature range of -40°F to 250°F, this coupling is a reliable solution for a variety of industries and applications.
Top product features:
- The coupling allows rapid and tool-free connection and disconnection of hoses or equipment through a push-to-connect locking mechanism.
- The coupling includes a tubular valve that controls air flow.
- The coupling is made of brass, providing durability and resistance to corrosion.
Top product applications:
- Pneumatic
- Hose Barb with Male hose fitting gender
- Fluid or air line systems
The PARKER - B50-3BP is a push-to-connect hose coupling for pneumatic applications, allowing rapid and tool-free connection and disconnection of hoses or equipment. It features a push-to-connect locking mechanism and includes a tubular valve that controls air flow. Made of brass, this coupling is compatible with hoses sized 1/4 in inner diameter and 1/4 in barb size (per specified dimensions). It provides a connection intended to streamline hose changes and reduce downtime in relevant fluid or air line systems.
Key Features:
- - Application: Pneumatic
- - Connection Type: Hose Barb with Male hose fitting gender
- - Barb Size: 1/4 in
- Hose Fitting Size: 1/4 in
- For Hose I.D.: 1/4 in
- - Coupling Component: Socket
- - Coupling Locking Type: Push-to-Connect
- - Interchange Type: ARO
- - Includes Valve: Yes
- Valve Type: Tubular
- - Material: Brass
- - Max. flow rate: 707.92 lpm (when used within the specified pressure/temperature conditions)
- - Rated maximum working pressure: 300 psi at 70°F (do not exceed specified ratings)
- - Overall Length: 2.31 in (2 5/16 in)
- - Max. Outside Diameter: 0.875 in (7/8 in)
- - Seal Material: Nitrile
- - Rated temperature range: -40°F to 250°F (for use within these temperatures)
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 0.80
- Package Height: 0.80
- Package Weight: 0.20
