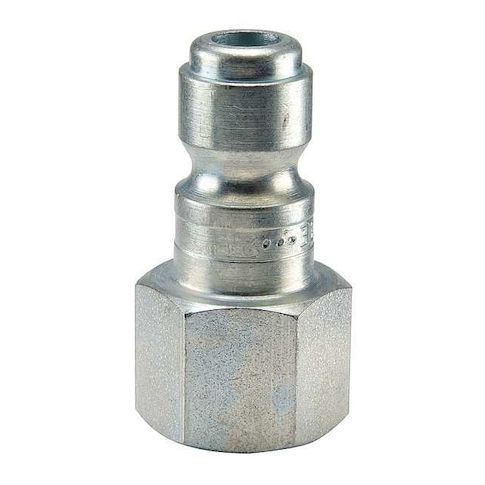

Coupler Plug, Steel, 1/2 In. Pipe, 110 cfm MPN:3F
The Parker 3F Coupler Plug is a reliable and efficient solution for pneumatic air hose connections. Designed for use in applications requiring high pressure and flow rates, this steel construction coupler provides push/pull locking for easy connection and disconnection without additional tools. With a maximum working pressure of 300 psi and a flow rate of 3,114.85 L/min, it's ideal for use in industrial settings, such as manufacturing, construction, and oil and gas operations. Its compact design and trivalent chrome finish ensure durability and long-lasting performance. Perfect for applications where quick and secure connections are crucial.
Top product features:
- Push/pull locking provides a secure connection and disconnection mechanism without the need for additional tools.
- The coupling is rated for a maximum working pressure of 300 psi at 70°F, ensuring safe operation in a variety of applications.
- The steel construction with a trivalent chrome finish provides durability and resistance to corrosion.
Top product applications:
- Air Compressor Coupling
- Pneumatic Air Hose Connection
- Industrial Air Supply System
The PARKER - 3F is a designed for pneumatic air hose connections (per the specified 1/2"–14 NPT thread and maximum working pressure). provides push/pull locking for connection and disconnection without additional tools. is rated for a maximum working pressure of 300 psi at 70°F. This coupling is the plug (male) component for the specified coupling interface.
- - Material: Steel construction with a trivalent chrome finish.
- - Connection type: 1/2" -14 NPT thread (female) for hose attachment.
- - Hose fitting size and coupling size: 1/2 in.
- - Maximum working pressure: 300 psi at 70°F.
- - Maximum flow rate: 3,114.85 L/min (as tested/measured by the manufacturer specification).
- - Operating temperature range: -40°F to 250°F.
- - Outside diameter: 1 3/16 in.
- - Overall length: 2 1/4 in.
- - Does not include an integrated valve.
- - Does not have a barbed hose tail.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.30
- Package Width: 1.20
- Package Height: 1.20
- Package Weight: 0.20
