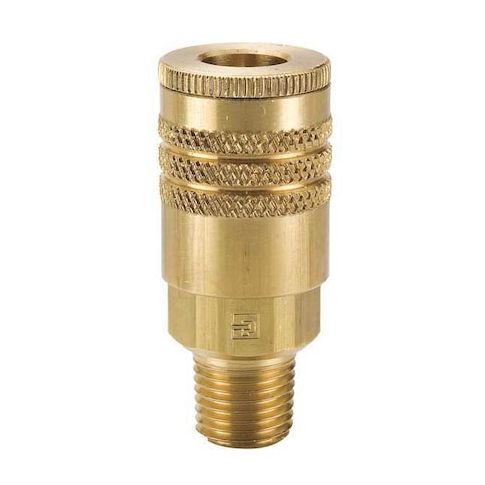

Coupler Body, Brass, MNPT, 3/8 In. Pipe MPN:B52E

The PARKER - B52E quick connect hose coupling is intended for pneumatic applications. It supports hand-operated (tool-free) connection and disconnection of hoses or equipment, intended to form a seal for pneumatic connections when installed with compatible components. This coupling features a brass construction and includes an integrated tubular valve for flow control during connection/disconnection. It is compatible with 1/4-inch body and coupling sizes and connects using a 3/8-inch male hose fitting with a 3/8"-18 thread size. The coupling utilizes a sleeve locking mechanism and is classified under the ARO interchange type.

Key Features:

• - Application: Pneumatic use
• - Material: Brass body
• - Coupling size and body size: 1/4 in
• - Hose fitting: Male, 3/8 in with 3/8"-18 thread size
• - Includes an integrated tubular valve for flow control
• - Coupling component: Socket
• - Locking type: Sleeve
• - Max. flow rate: 25 pcm
• - Rated maximum working pressure: 300 psi (at 70°F)
• - Seal material: Nitrile
• - Operating temperature range (rated): -40°F to 250°F
• - Overall length: 2.06 in
• - Max. outside diameter: 7/8 in
• - Interchange type: ARO
