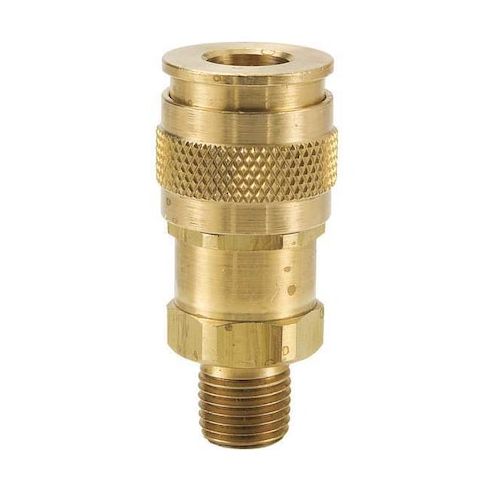

Coupler Body, Brass, MNPT, 3/8 In. Pipe MPN:UC-251-6MP

The PARKER - UC-251-6MP is a quick-connect fitting for pneumatic hose connection (push-to-connect locking mechanism). It enables push-to-connect locking mechanism for connection and disconnection of compatible hoses without hand tools, providing a sealed connection when properly installed (nitrile seal) for pneumatic air lines. The fitting is made of brass and includes an integrated tubular valve that controls air flow when connected or disconnected. It features a male hose fitting and a 1/4-inch NPT connection, facilitating compatibility with standard pneumatic systems.

Key Features:

• - Application: Pneumatic
• - Connection Type: 1/4" NPT
• - Hose Fitting Gender: Male
• - Hose Fitting Size: 3/8 in
• - Coupling Locking Type: Push-to-Connect
• - Coupling Size: 1/4 in
• - Coupling Component: Socket
• - Material: Brass
• - Includes Valve: Yes (Tubular type)
• - Seal Material: Nitrile
• - Max. Flow Rate: 707.92 lpm
• - Max. Working Pressure @ 70°F: 150 psi
• - Temperature Range: -40°F to 250°F
• - Overall Length: 2.25 in
• - Max. Outside Diameter: 1 in
• - Interchange Type: Universal
