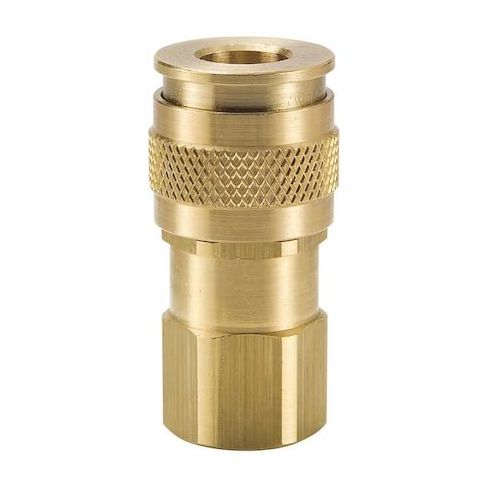

Coupler Body, Brass, FNPT, 3/8 In. Pipe MPN:UC-251-6FP
The Parker UC-251-6FP is a reliable and efficient push-to-connect hose coupling designed for pneumatic applications. Its brass construction and nitrile seal ensure a secure and leak-free connection, making it ideal for use in a variety of industries, including manufacturing, automation, and HVAC. The coupling's integrated tubular valve allows for precise control of airflow, while its universal interchange standards ensure compatibility with a wide range of systems. With a maximum working pressure of 150 psi and a temperature rating of -40°F to 250°F, this coupling is perfect for applications where durability and reliability are crucial.
Top product features:
- Push-to-connect locking enables connection and disconnection without tools.
- The nitrile seal provides a connection with a rated max working pressure of 150 psi at 70°F.
- The integrated tubular valve controls airflow within the system.
Top product applications:
- Pneumatic systems
- Pneumatic applications
- Hose coupling for pneumatic applications
The PARKER - UC-251-6FP is a push-to-connect hose coupling for pneumatic applications. It enables push-to-connect locking for connection and disconnection without tools. Constructed from brass, this coupling provides a connection using a nitrile seal
- rated max working pressure of 150 psi at 70°F. It features a female hose fitting with a 3/8 in size and a 1/4 in coupling size compatible with universal interchange standards. The integrated tubular valve controls airflow within the system, and the nitrile seal material has a temperature rating of -40°F to 250°F.
Key Features:
- - Application: Pneumatic systems
- - Body and coupling size: 1/4 in
- - Connection type: NPT thread, 3/8"-18 size
- - Hose fitting gender: Female
- - Max. flow rate: 707.92 liters per minute
- - Max. working pressure: 150 psi @ 70°F
- - Overall length: 2.19 in
- - Max. outside diameter: 1 in
- - Coupling component: Socket
- - Coupling locking type: Push-to-Connect
- - Valve included: Yes, tubular type
- - Seal material: Nitrile
- - Material: Brass
- - Interchange type: Universal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 2.30
- Package Weight: 0.25
