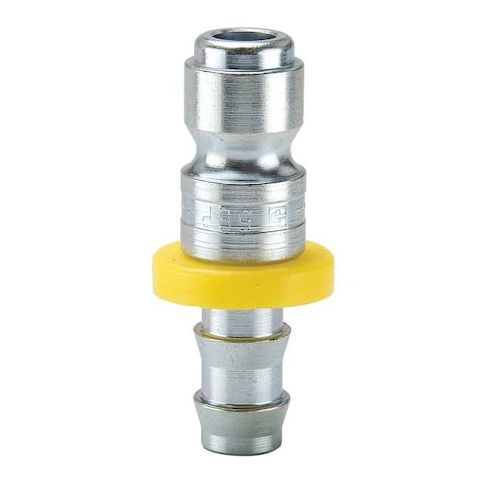

Coupler Plug, Steel, Push On, 25 cfm MPN:8CP
The Parker 8CP Coupler Plug is a reliable and efficient solution for pneumatic compressed air systems. Designed for rapid tool-free connection and disconnection of hoses, this plug-type coupling features a sleeve locking mechanism for a sealed connection. Constructed from steel with a trivalent chrome finish, it withstands temperatures from -40°F to 250°F and pressures up to 300 psi. Ideal for pneumatic applications, the 8CP Coupler Plug is compatible with 1/4 in hose inner diameter and supports high flow rates of 25 cfm. Its compact design and durable construction make it suitable for a variety of industries and applications.
Top product features:
- Hose barb connection with a barb size of 1/4 in, compatible with 1/4 in hose I.D.
- Sleeve locking mechanism for tool-free connection and disconnection of hoses
- Constructed from steel with a trivalent chrome finish for durability and corrosion resistance
Top product applications:
- Pneumatic
- Automotive
- Tru-Flate
The PARKER - 8CP is a hose coupling for rapid tool-free connection and disconnection of hoses in pneumatic compressed air systems. It supports tool-free connection and disconnection via the sleeve locking mechanism, providing a sealed connection when installed with compatible hose and proper assembly. This hose coupling includes a 1/4 in barb for compatibility with 1/4 in hose inner diameter. Constructed from steel with a trivalent chrome finish
- rated temperature range: -40°F to 250°F
- rated maximum working pressure: 300 psi.
Key Features:
- - Hose barb connection with a barb size of 1/4 in, compatible with 1/4 in hose I.D.
- - Male fitting gender
- - 1/4 in coupling size and body size
- - plug-type coupling component with sleeve locking mechanism (for hose connection/disconnection)
- - Material: Steel with trivalent chrome finish
- - maximum flow rate: 707.92 L/min (at rated conditions)
- - Maximum outside diameter: 7/16 in
- - Overall length of 1.69 in
- - Temperature range: -40°F to 250°F
- - Application: Pneumatic
- - Interchange type: Tru-Flate-Automotive
- - Does not include an integrated valve.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.70
- Package Width: 0.70
- Package Height: 0.70
- Package Weight: 0.05
