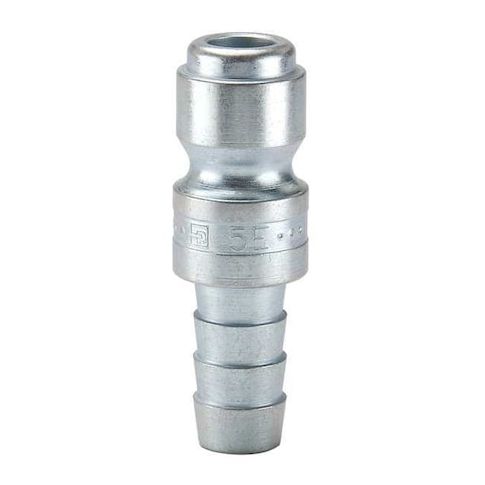

Coupler Plug, Steel, Hose Barb, 25 cfm MPN:8C
The Parker 8C Quick Connect Plug is a reliable and efficient solution for pneumatic applications. Designed for use in automotive systems, this plug features a sleeve locking mechanism that allows for easy connection and disconnection without the need for tools. The steel fitting with trivalent chrome coating provides durability and resistance to corrosion, while the 1/4 in hose barb connection ensures a secure fit with hoses of the same diameter. Ideal for applications where quick and easy connections are crucial, the Parker 8C plug is perfect for use in pneumatic systems, ensuring smooth operation and minimizing downtime.
Top product features:
- It supports connection and disconnection using a sleeve locking mechanism without tools.
- It has a male hose barb connection for 1/4 in inner diameter hoses.
- It is rated for operation within a temperature range of -40°F to 250°F.
Top product applications:
- Pneumatic systems
- Automotive applications
- Industrial pneumatic systems
The PARKER - 8C is a hose coupling for pneumatic applications. It supports connection and disconnection using a sleeve locking mechanism without tools, intended to form a connection within the specified pressure and temperature ranges. The coupling features a male hose barb connection and is intended for use with hoses that have a 1/4 in inner diameter. The steel fitting has a trivalent chrome coating and is rated for operation within a temperature range of -40°F to 250°F, with a rated maximum working pressure of 300 psi at 70°F. Its overall length measures 1.625 in, and it supports a maximum volumetric flow rate of 707.92 lpm.
Key Features:
- - Application: Pneumatic systems
- - Coupling type: Plug with sleeve locking mechanism
- - Hose barb connection with 1/4 in barb size matching 1/4 in hose I.D.
- - Material: Steel with trivalent chrome coating
- - Hose fitting gender: Male
- - Maximum working pressure: 300 psi at 70°F
- - Maximum volumetric flow rate: 707.92 lpm
- - Temperature operating range: -40°F to 250°F
- - Overall length: 1 5/8 in (1.625 in)
- - Maximum outside diameter: 7/16 in
- - Interchange type: Tru-Flate-Automotive
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.60
- Package Width: 0.50
- Package Height: 0.50
- Package Weight: 0.01
