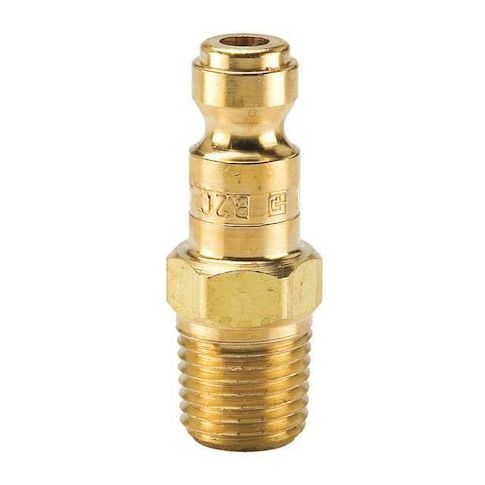

Coupler Plug, Brass, MNPT, 1/4 In. Pipe MPN:B2C
The Parker B2C Quick Connect Plug is a reliable and efficient solution for pneumatic applications. Designed for use with Tru-Flate-Automotive interchange standard equipment, it provides a secure and leak-free connection with a push/pull locking mechanism. Constructed from durable brass, this quick connect fitting is ideal for air transfer and fluid applications, offering a maximum flow rate of 707.92 liters per minute and a pressure rating of up to 300 psi. Suitable for a range of industries, including automotive and manufacturing, this plug is a convenient and cost-effective solution for equipment maintenance and repair.
Top product features:
- It uses a sleeve locking mechanism for push/pull connection and disconnection without a tool.
- It features a nitrile O-ring for leak prevention during fluid or air transfer.
- It is compatible with equipment that uses the Tru-Flate-Automotive interchange standard.
Top product applications:
- Air compressor systems
- Pneumatic tool applications
- Automotive fluid transfer systems
The PARKER - B2C is a quick-connect hose coupling for pneumatic applications. It features a male plug coupling with a 1/4-inch NPT connection and a 1/4-inch hose fitting size. Constructed from brass, it uses a sleeve locking mechanism for push/pull connection and disconnection without a tool to help provide sealing via a nitrile O-ring for leak prevention during fluid or air transfer. This quick connect fitting is compatible with equipment that uses the Tru-Flate-Automotive interchange standard and is configured without an integrated valve component.
Key Features:
- - Material: Brass construction for the main body.
- - Coupling Type: Male plug with 1/4 in NPT connection size and 1/4 in hose fitting size.
- - Coupling Locking Type: Sleeve – enables push/pull locking action.
- - Seal Material: Nitrile O-ring to maintain seal integrity.
- - Max. rated flow rate: 707.92 liters per minute.
- - Pressure rating: up to 300 psi at 70°F.
- - Operating temperature range: -40°F to 250°F.
- - Overall Length: 1.63 inches.
- - Max. Outside Diameter: 7/8 inch.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.70
- Package Width: 0.70
- Package Height: 0.70
- Package Weight: 0.05
