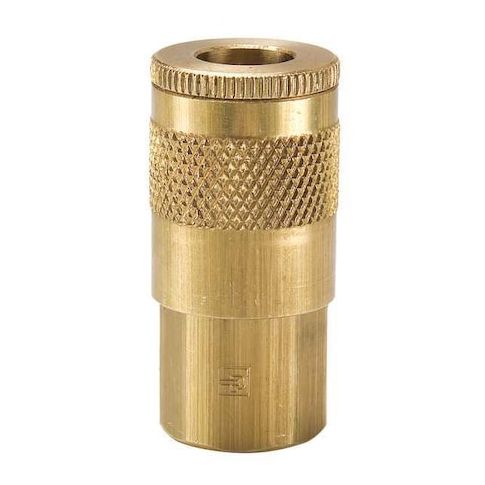

Coupler Body, Brass, 1/2 In. Pipe, 110 cfm MPN:B17
The PARKER B17 is a reliable and efficient quick connect hose coupling designed for pneumatic applications. Its brass construction and nitrile seal ensure a secure connection and disconnection via the sleeve locking mechanism, making it ideal for use in various industries such as manufacturing, construction, and oil and gas. With a maximum flow rate of 3,114.85 liters per minute and a temperature range of -40°F to 250°F, this coupling can handle demanding applications. Its integrated tubular valve for flow control and 1/2 inch NPT female threaded connection make it a versatile and convenient solution for pneumatic systems.
Top product features:
- Quick connection and disconnection via the sleeve locking mechanism
- Integrated tubular valve for flow control
- Supports pneumatic applications with a maximum working pressure of 300 psi at 70°F
Top product applications:
- Air Compressor Systems
- Pneumatic Tool Applications
- Industrial Hose Assemblies
The PARKER - B17 is a quick connect hose coupling for pneumatic applications. Constructed from brass with a nitrile seal, it supports quick connection and disconnection via the sleeve locking mechanism. It is rated for use up to 300 psi at 70°F and includes an integrated tubular valve for flow control. This coupling features a 1/2 inch NPT female threaded connection and 1/2 inch hose fitting size, with a maximum flow rate of 3,114.85 liters per minute. It is rated for operation within a temperature range of -40°F to 250°F.
Key Features:
- - Intended for pneumatic use.
- - Coupling component type: Socket with sleeve locking mechanism.
- - Connection and hose fitting size: 1/2 inch.
- - Thread size: 1/2"-14 NPT female.
- - Made of brass with nitrile sealing material.
- - Includes an integrated tubular valve for flow control.
- - Maximum working pressure: 300 psi at 70°F.
- - Maximum flow rate: 3,114.85 liters per minute.
- - Overall length: 2.94 inches.
- - Maximum outside diameter: 1 3/16 inches.
- - Temperature range: -40°F to 250°F.
- - Interchange type: Industrial.
- - Does not have a barbed hose tail.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.20
- Package Height: 1.20
- Package Weight: 0.50
