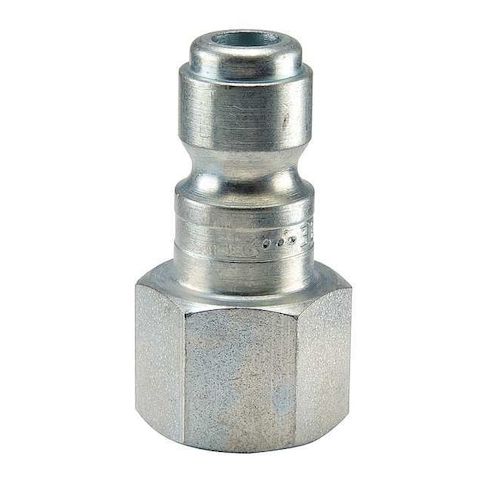

Coupler Plug, Steel, FNPT, 1/4 In. Pipe MPN:3C

• The PARKER - 3C is rated for pneumatic air-line use. It connects and disconnects without use of a tool, using the sleeve locking mechanism. is intended to form a sealed connection for use with air lines. Its steel components with trivalent chrome finish are constructed with steel components. is listed as compatible with the Tru-Flate-Automotive interchange type and connects via a 1/4 inch NPT female hose fitting.

  Key Features:


  • - Coupling size: 1/4 in with 1/4" -18 NPT thread size.
  • - Maximum rated working pressure: 300 psi at 70°F.
  • - Maximum rated flow rate: 707.92 liters per minute.
  • - Seal material: Nitrile
  • rated operating temperature range: -40°F to 250°F
  • - Overall length of 1.5 inches and maximum outside diameter of 3/4 inch.
  • - Coupling component type is a plug with a sleeve locking mechanism.
  • - Hose fitting gender: Female
  • hose fitting size: 1/4 in.
  • - Barbed connection: No
  • the fitting does not have a barbed hose tail.
  • - Includes no valve component.
