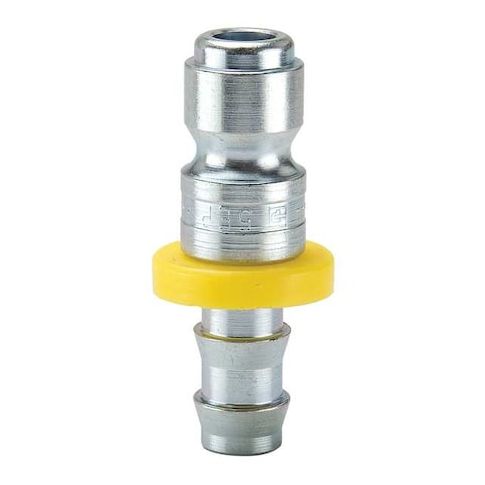

Coupler Plug, Steel, Push On, 50 cfm MPN:5EP
The Parker 5EP hose coupling is a reliable and efficient solution for pneumatic systems, providing a push-to-connect locking mechanism for easy hose attachment and release without the need for hand tools. Constructed from high-quality steel with a trivalent chrome finish, this coupling is designed for use in Tru-Flate-Automotive interchange applications and can withstand operating temperatures from -40°F to 250°F. Its 300 psi maximum working pressure and 1,415.84 L/min flow rate make it suitable for a wide range of applications, including automotive and industrial uses, where a secure and reliable connection is critical.
Top product features:
- Push-to-connect locking mechanism for hose attachment and release without hand tools.
- Male hose fitting with a 3/8 in barb size that accepts hoses with a 3/8 in inner diameter.
- Trivalent chrome finish for corrosion resistance.
Top product applications:
- Pneumatic systems
- Tru-Flate-Automotive interchange applications
- Automotive applications
The PARKER - 5EP hose coupling for pneumatic applications provides a push-to-connect locking mechanism for hose attachment and release without hand tools. It is equipped with a push-to-connect locking mechanism and a male hose fitting with a 3/8 in barb size that accepts hoses with a 3/8 in inner diameter. The coupling is constructed from steel with a trivalent chrome finish and is rated for use with Tru-Flate-Automotive interchange applications (per the specified interchange type). Rated for operation at -40°F to 250°F, it is rated maximum working pressure: 300 psi at 70°F, with a rated maximum flow rate: 1,415.84 L/min.
Key Features
- - Application: Pneumatic systems
- - Connection Type: Push Hose Barb
- - Hose Fitting Gender: Male
- - Hose Fitting Size and Barb Size: 3/8 in
- - Coupling Size: 3/8 in
- - Coupling Locking Type: Push-to-Connect
- - Material: Steel with trivalent chrome finish
- - Maximum Working Pressure: 300 psi @ 70°F
- - Maximum Flow Rate: 1,415.84 lpm
- - Operating Temperature Range: -40°F to 250°F
- - Overall length: 2 in
- - Maximum outside diameter: 5/8 in
- - Includes Valve: No
- - Interchange Type: Tru-Flate-Automotive
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.10
- Package Width: 0.90
- Package Height: 0.90
- Package Weight: 0.05
