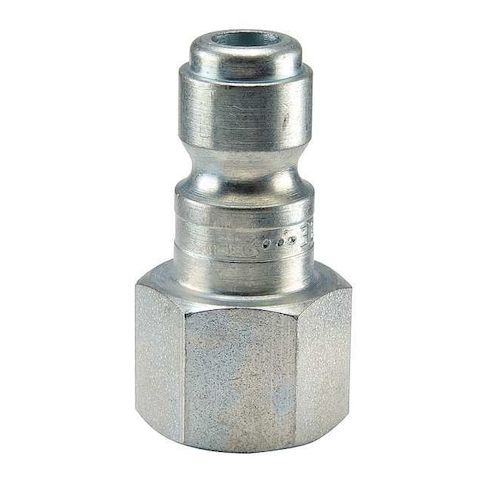

Coupler Plug, Steel, FNPT, 1/8 In. Pipe MPN:1C

The PARKER - 1C is a quick connect hose coupling designed for pneumatic applications. It enables rapid, tool-free connection and disconnection of air hoses or equipment via a sleeve locking mechanism. Constructed from steel with a trivalent chrome finish, this plug-type fitting provides a connection compatible with specified 1/4 in coupling/body sizes (per included sizing information). It features a female hose fitting connection sized at 1/8 in and a nominal thread size of 1/8"-27 NPT. The fitting operates within a temperature range of -40°F to 250°F and has a maximum working pressure of 300 psi.

Key Features:

• - Application: Pneumatic service
• - Coupling Type: Plug with sleeve locking
• - Material: Steel with trivalent chrome finish
• - Body and Coupling Size: 1/4 in
• - Hose Fitting: Female, 1/8 in size
• - Connection Type: NPT threaded (1/8"-27)
• - Seal Material: Nitrile
• - Max. Working Pressure: 300 psi @ 70°F
• - Max. Flow Rate: 707.92 liters per minute
• - Temperature Range: -40°F to 250°F
• - Overall Length: 1.31 in
• - Max. Outside Diameter: 9/16 in
• - Interchange Type: Tru-Flate-Automotive
• - Includes Valve: No
• - Barbed: No
