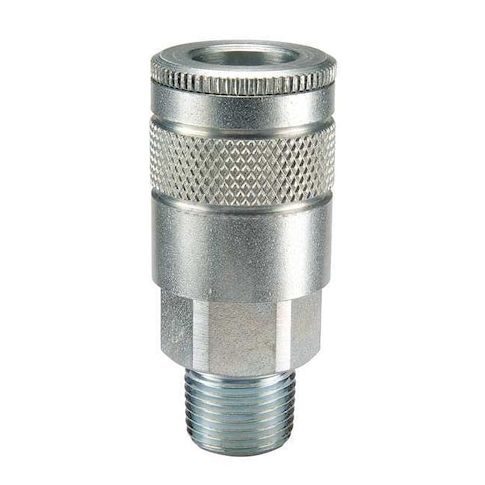

Coupler Body, Steel, 3/8 In. Pipe, 110 cfm MPN:16E

• The PARKER - 16E is a quick-connect hose coupling designed for pneumatic applications

• provides connection/disconnection using a quick-connect coupling mechanism (no tools required for coupling/uncoupling). It features a sleeve locking mechanism intended to form a sealing joint under specified working conditions and includes a tubular valve to control airflow. Constructed from steel with a trivalent chrome finish, it supports hose fitting sizes of 3/8 in and a coupling size of 1/2 in with NPT male connection threads. This is compatible with Tru-Flate-Automotive interchange (per listed interchange standard) and has a maximum working pressure of 300 psi at 70°F and a maximum flow rate of 3,114.85 liters per minute. Seals made from nitrile. The product is rated for operation within a temperature range of -40°F to 250°F.

  Key Features:


  • - Application: Pneumatic use
  • - Material: Steel body with trivalent chrome plating
  • - Connection type: Male NPT threads, size 3/8"-18
  • - Coupling component: Socket
  • - Coupling locking type: Sleeve
  • - Includes an integrated tubular valve
  • - Hose fitting size: 3/8 in
  • coupling size: 1/2 in
  • - Seal material: Nitrile
  • - Max. working pressure: 300 psi @ 70°F
  • - Max. flow rate: 3,114.85 lpm
  • - Temperature range: -40°F to 250°F
  • - Overall length: 2.94 in
  • - Max. outside diameter: 1.19 in
  • - Interchange type: Tru-Flate-Automotive
