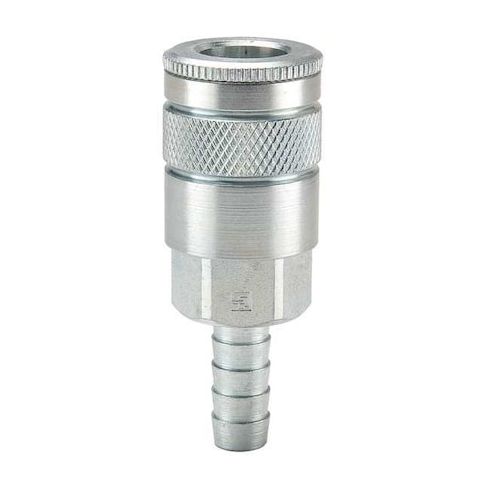

Coupler Body, Steel, Hose Barb, 110 cfm MPN:16-7B

The PARKER - 16-7B is a quick connect hose coupling for pneumatic applications. Enables connection and disconnection using the integrated sleeve-type locking mechanism. It features a hose barb connection type with a 3/4 in barb size for hose attachment using the specified hose barb (3/4 in barb size) and a 1/2 in body size quick connect air coupling. The coupling includes an integrated tubular valve to control airflow and operates using a sleeve-type locking mechanism. Constructed from steel with a trivalent chrome finish, it accommodates hoses with a 3/4 in inner diameter. The coupling's sealing is made from nitrile material, rated for operation within -40°F to 250°F, and it delivers a maximum flow rate of 3,114.85 liters per minute.

Key Features:

• - Application: Pneumatic.
• - Connection Type: Hose Barb with 3/4 in barb size and 1/2 in body size.
• - Coupling Component: Socket.
• - Coupling Locking Type: Sleeve.
• - Coupling Size: 1/2 in.
• - Includes Valve: Yes, tubular type.
• - Material: Steel with trivalent chrome finish.
• - Max. Flow Rate: 3,114.85 lpm.
• - Max. Working Pressure @ 70°F: 300 psi.
• - Overall Length: 3.63 in.
• - Seal Material: Nitrile.
• - Temperature Range: -40°F to 250°F.
• - Hose Fitting Gender: Male.
• - Interchange Type: Tru-Flate-Automotive.
• - Max. Outside Diameter: 1 3/16 in.
