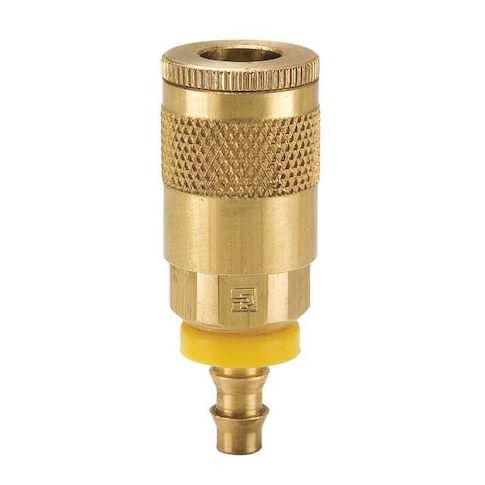

Coupler Body, Brass, Push On, 25 cfm MPN:B10-3BP
The Parker B10-3BP Coupler Body is a reliable and efficient push-to-connect hose coupling for pneumatic applications. Its push-to-connect locking mechanism enables easy connection and disconnection without tools, reducing downtime and increasing productivity. Constructed from durable brass with nitrile sealing material, it operates within a wide temperature range of -40°F to 250°F. Suitable for pneumatic systems, this coupling is ideal for use in various industries, including automotive, manufacturing, and construction. Its compact design and low pressure drop make it an excellent choice for applications requiring precise airflow control, such as pneumatic tools, air compressors, and pneumatic cylinders.
Top product features:
- Push-to-connect locking mechanism enables connection and disconnection without tools.
- The coupling has a tubular valve for airflow control during connection and disconnection.
- The fitting operates within a temperature range of -40°F to 250°F.
Top product applications:
- Pneumatic systems
- Pneumatic systems
- Automotive applications
The PARKER - B10-3BP is a push-to-connect hose coupling for pneumatic applications, enabling connection and disconnection without tools. It uses a push-to-connect locking mechanism with a tubular valve for airflow control during connection and disconnection. The coupling has a male hose fitting with a 1/4 in barb size that fits hoses with a 1/4 in inner diameter. Constructed from brass with nitrile sealing material, this fitting operates within a temperature range of -40°F to 250°F.
Key Features:
- - Application: Pneumatic systems
- - Connection Type: Push Hose Barb
- - Coupling Component: Socket
- - Coupling Locking Type: Push-to-Connect
- - Coupling Size: 1/4 in
- - Hose Fitting Gender: Male
- - Barb Size: 1/4 in
- - Included Valve: Yes, tubular type
- - Material: Brass
- - Seal Material: Nitrile
- - Maximum Outside Diameter: 15/16 in
- - Overall Length: 2.31 in
- - Temperature Range: -40°F to 250°F
- - Interchange Type: Tru-Flate-Automotive
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.80
- Package Width: 0.80
- Package Height: 2.40
- Package Weight: 0.20
