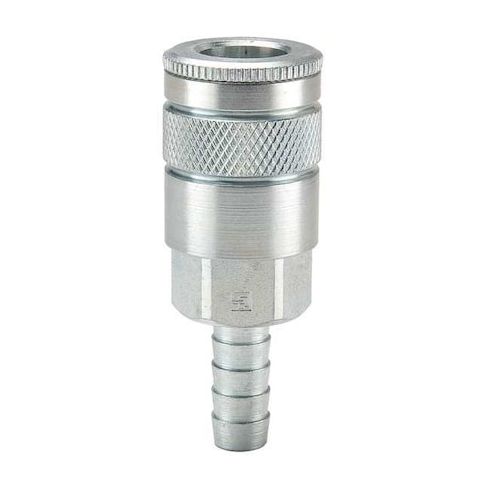

Coupler Body, Steel, Hose Barb, 110 cfm MPN:16-6B
Easily connect and disconnect pneumatic air lines with the PARKER 16-6B coupler body, featuring a reliable sleeve-lock quick-connect mechanism. This durable steel coupler supports hose changes and includes a male hose barb connection with an integrated tubular valve to control airflow. Ideal for pneumatic applications, it provides a tool-free connection and disconnection process, reducing downtime and increasing efficiency. Suitable for use in a variety of industries, including manufacturing, construction, and automotive, this coupler is designed to withstand temperatures from -40°F to 250°F, making it a reliable choice for demanding environments.
Top product features:
- Tool-free sleeve-lock connection and disconnection of hoses using a sleeve locking mechanism
- Provides a pressure-rated connection with a nitrile seal
- Includes a male hose barb connection with an integrated tubular valve to control airflow
Top product applications:
- Pneumatic
- Automotive
- Industrial
The PARKER - 16-6B is a hose coupling with sleeve-lock quick-connect mechanism. For pneumatic air line connections, it provides tool-free sleeve-lock connection and disconnection of hoses using a sleeve locking mechanism, forming a pressure-rated connection with a nitrile seal. Compatible with hoses having a 1/2 in inner diameter, this coupling supports hose changes and includes a male hose barb connection with an integrated tubular valve to control airflow.
Key Features:
- - Application: Pneumatic
- - Barb Size: 1/2 in
- - Barbed Hose Tail: Yes
- - Body Size: 1/2"
- - Connection Type: Hose Barb
- - Coupling Component: Socket
- - Coupling Locking Type: Sleeve
- - Coupling Size: 1/2 in
- - Finish: Trivalent Chrome
- - Hose Fitting Gender: Male
- - Includes Valve: Yes, Tubular Type
- - Interchange Type: Tru-Flate-Automotive
- - Material: Steel
- - Max Flow Rate: 3,114.85 lpm
- - Max Outside Diameter: 1 3/16 in
- - Overall Length: 3 1/8 in
- - Seal Material: Nitrile
- - Operating temperature range: -40°F to 250°F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 1.20
- Package Height: 1.20
- Package Weight: 0.40
