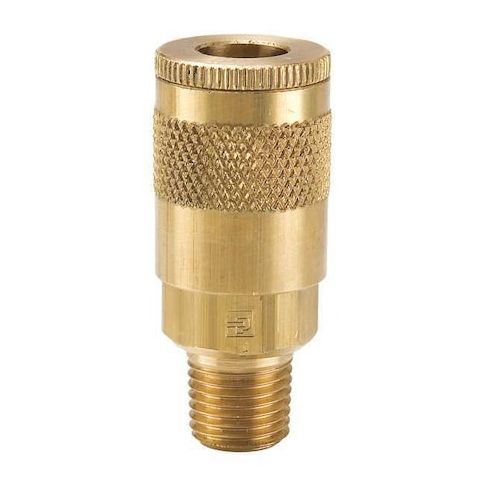

Coupler Body, Brass, MNPT, 1/8 In. Pipe MPN:B12A
The Parker B12A Coupler Body is a reliable and efficient solution for pneumatic air line connections. Designed for easy tool-free connection and disconnection, this brass coupler features a tubular valve for controlled airflow during hose changes. Suitable for use with 1/4-inch air couplings and 1/8-inch hose fittings, it's ideal for applications such as automotive, industrial, and commercial settings. With a maximum working pressure of 300 psi and a temperature range of -40°F to 250°F, this coupler provides a secure and leak-free connection, ensuring optimal performance and efficiency in a variety of pneumatic systems.
Top product features:
- Creates a sealed connection when properly installed and used within the specified pressure and temperature ranges.
- Includes a tubular valve that controls airflow during hose changes.
- Configured for connection and disconnection without tools using a sleeve locking mechanism.
Top product applications:
- Pneumatic
- Automotive
- Air line connections
The PARKER - B12A is a quick connect hose coupling intended for pneumatic air line connections, configured for connection and disconnection without tools using a sleeve locking mechanism. Constructed from brass with nitrile seals, it creates a sealed connection when properly installed and used within the specified pressure and temperature ranges. This coupling includes a tubular valve that controls airflow during hose changes. Interchange type is Tru-Flate-Automotive, and it is suitable for installation with 1/4-inch size air couplings and 1/8-inch hose fittings with male thread gender.
Key Features:
- - Construction material: Brass
- - Application: Pneumatic
- - Coupling component: Socket
- - Coupling locking type: Sleeve
- - Coupling size: 1/4 in
- - Hose fitting gender: Male
- - Hose fitting size: 1/8 in
- - Thread size: 1/8"-27
- - Includes tubular valve
- - Interchange type: Tru-Flate-Automotive
- - Maximum flow rate: 707.92 liters per minute
- - Maximum working pressure (rating): 300 psi at 70°F
- - Operating temperature range (rating): -40°F to 250°F
- - Overall length: 1.88 in
- - Maximum outside diameter: 15/16 in
- - Seal material: Nitrile
