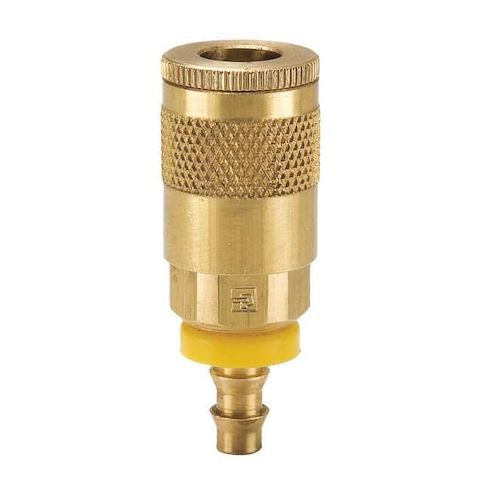

Coupler Body, Brass, Push On, 25 cfm MPN:B10-5BP
The Parker B10-5BP Coupler Body is a reliable and efficient solution for pneumatic applications. Designed for manual coupling and uncoupling without tools, this quick connect hose coupling features a sleeve locking mechanism and a tubular valve to regulate air flow. Compatible with 3/8 in hose inner diameters, it's ideal for use in pneumatic air lines at pressures up to 300 psi and temperatures ranging from -40°F to 250°F. With its brass construction and nitrile seal, this coupler body ensures a secure and reliable connection, making it perfect for applications in automotive, manufacturing, and industrial settings.
Top product features:
- It is designed for manual coupling and uncoupling without requiring tools.
- The coupling includes a tubular valve intended to regulate air flow when coupling or uncoupling.
- The fitting features a sleeve locking mechanism.
Top product applications:
- Pneumatic
- Automotive
- Industrial
The PARKER - B10-5BP is a quick connect hose coupling designed for pneumatic applications. It is designed for manual coupling and uncoupling without requiring tools, and features a sleeve locking mechanism. The coupling includes a tubular valve intended to regulate air flow when coupling or uncoupling. It is compatible with hose inner diameters of 3/8 in and has a 1/4 in body size and coupling size. Brass construction with a nitrile seal, it is rated for use with pneumatic air lines at the specified pressure and temperature ranges and includes a nitrile seal for sealing. The fitting has a maximum working pressure: 300 psi at 70°F (see specifications for operating limits), and an overall length of 2.50 in.
Key Features:
- - Application: Pneumatic
- - Connection Type: Hose Barb
- - Hose Fitting Gender: Male
- - Barb Size: 3/8 in for hose connection
- - Coupling Locking Type: Sleeve
- - Coupling Component: Socket
- - Interchange Type: Tru-Flate-Automotive
- - Includes Valve: Yes (Tubular type)
- - Material: Brass
- - Seal Material: Nitrile
- - Max. Flow Rate: 707.92 liters per minute
- - Max. Working Pressure @ 70°F: 300 psi
- - Max. Outside Diameter: 15/16 in
- - Overall Length: 2 1/2 in (2.50 in)
- - Temperature Range: -40°F to 250°F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 0.80
- Package Height: 0.80
- Package Weight: 0.20
