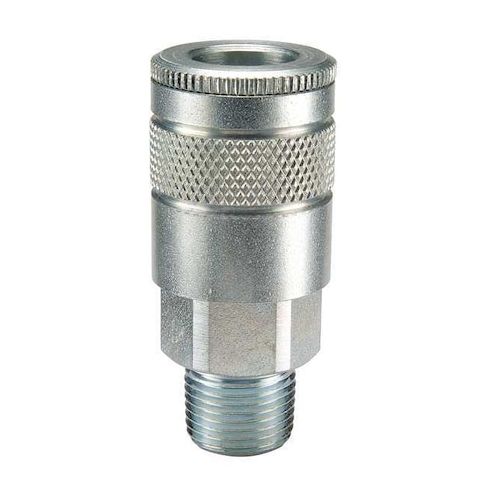

Coupler Body, Steel, 3/4 In. Pipe, 110 cfm MPN:16G
The Parker 16G Coupler Body is a robust and reliable quick connect hose coupling designed for pneumatic applications. Constructed from durable steel with a trivalent chrome finish, it features a tubular valve to control air flow and a standard NPT male connection. Suitable for use with 3/4 inch hoses, it offers maximum working pressure of 300 psi at 70°F and a flow rate of 3,114.85 liters per minute. Ideal for applications in manufacturing, construction, and automotive industries, this coupling ensures efficient and safe air supply, reducing downtime and increasing productivity. Its compact design and easy installation make it a valuable addition to any pneumatic system.
Top product features:
- Controlled air flow through a tubular valve.
- Includes a standard NPT male connection.
- Uses a sleeve locking mechanism for secure hose attachment.
Top product applications:
- Pneumatic applications
- Automotive applications
- Industrial applications
The PARKER - 16G is a quick connect hose coupling designed for pneumatic applications. Constructed from steel with a trivalent chrome finish, it includes a tubular valve to control air flow and uses a standard NPT male connection. The coupling is compatible with 1/2 inch sized hoses and offers maximum working pressure: 300 psi at 70°F and a maximum flow rate of 3,114.85 liters per minute. Temperature range: -40°F to 250°F.
Key Features:
- - Application: Pneumatic
- - Connection Type: Male NPT, 3/4"-14 thread size
- - Coupling Component: Socket with sleeve locking mechanism
- - Hose Fitting Gender: Male
- - Hose Fitting Size: 3/4 in
- - Body Size and Coupling Size: 1/2 in
- - Material: Steel with trivalent chrome finish
- - Includes tubular valve
- - Maximum Working Pressure: 300 psi @ 70°F
- - Maximum Flow Rate: 3,114.85 lpm
- - Seal Material: Nitrile
- - Maximum Outside Diameter: 1 5/16 in
- - Overall Length: 3 3/16 in
- - Temperature Range: -40°F to 250°F
- - Interchange Type: Tru-Flate-Automotive
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 1.50
- Package Height: 1.50
- Package Weight: 0.50
