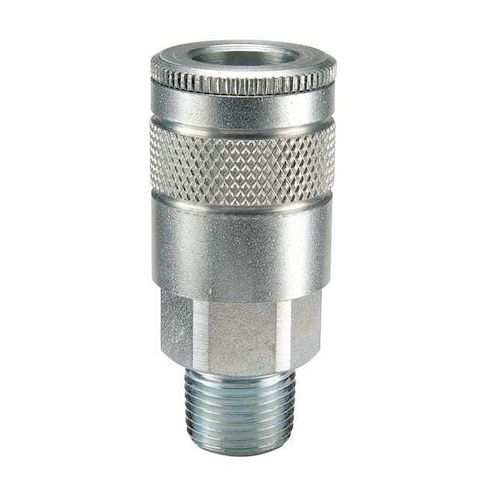

Coupler Body, Steel, 1/2 In. Pipe, 110 cfm MPN:16
The Parker 16 Coupler Body is a reliable and efficient solution for pneumatic applications, allowing for rapid connection and disconnection of hoses and equipment. Featuring a sleeve locking mechanism and integrated tubular valve, this coupling ensures a sealed connection and controlled flow. Constructed from durable steel with a trivalent chrome finish, it withstands temperatures from -40°F to 250°F and operates at up to 300 psi. Ideal for use in automotive, industrial, and manufacturing settings, this coupling is compatible with Tru-Flate-Automotive interchange standards and offers a maximum flow rate of 3,114.85 liters per minute.
Top product features:
- Rapid, tool-free connection and disconnection of hoses or equipment using a sleeve locking mechanism.
- Integrated tubular valve to control flow when connected.
- Sealed connection with nitrile seal material.
Top product applications:
- Pneumatic use
- Tru-Flate-Automotive interchange standards
- -40°F to 250°F temperature range
The PARKER - 16 is a quick connect hose coupling designed for pneumatic applications. It allows for rapid, tool-free connection and disconnection of hoses or equipment using a sleeve locking mechanism. The coupling is intended to form a sealed connection
- seal material: nitrile, featuring an integrated tubular valve to control flow when connected. Constructed from steel with a trivalent chrome finish, the coupling is compatible with operation from -40°F to 250°F. The coupling is sized at 1/2 inch with NPT male threads, compatible with Tru-Flate-Automotive interchange standards. Maximum flow rate: 3,114.85 liters per minute
- maximum working pressure: 300 psi at 70°F.
Key Features:
- - Application: Pneumatic use
- - Coupling Size and Hose Fitting Size: 1/2 inch
- - Connection Type: Male NPT threads, 1/2"-14 thread size
- - Coupling Component: Socket
- - Coupling Locking Type: Sleeve mechanism
- - Material: Steel with trivalent chrome finish
- - Includes Valve: Yes, tubular type
- - Max Working Pressure @ 70°F: 300 psi
- - Max Flow Rate: 3,114.85 liters per minute
- - Seal Material: Nitrile
- - Operating Temperature Range: -40°F to 250°F
- - Overall Length: 3.06 inches
- - Maximum Outside Diameter: 1 3/16 inches
- - Interchange Type: Tru-Flate-Automotive
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.45
