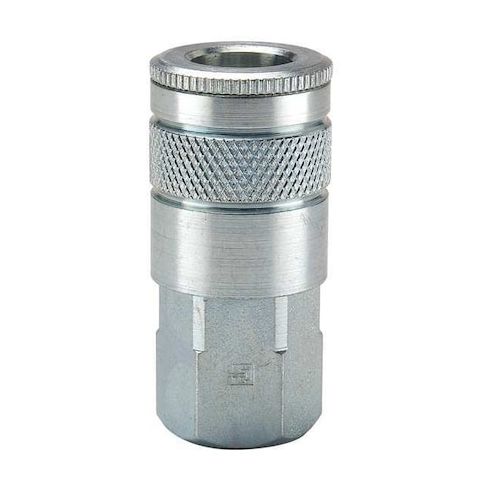

Coupler Body, Steel, FNPT, 1/2 In. Pipe MPN:15F
The Parker 15F Coupler Body is a reliable and efficient solution for pneumatic service applications. This quick connect hose coupling enables fast and easy connection and disconnection using a sleeve locking mechanism, eliminating the need for separate tools. The coupling features a valve for controlling air flow, providing a sealed connection for pneumatic service. Constructed from durable steel with a trivalent chrome finish, this coupler is compatible with pneumatic compressed air lines within specified pressure and temperature ranges. Ideal for use in a variety of industries, including automotive, manufacturing, and construction, this coupler ensures a secure and reliable connection.
Top product features:
- Enables connection and disconnection using a sleeve locking mechanism (no separate tools required)
- Features a valve for controlling air flow
- Provides a sealed connection for pneumatic service when installed using compatible threads and specified pressure/temperature ratings
Top product applications:
- Pneumatic service
- Pneumatic compressed air lines
- Automotive applications
The PARKER - 15F is a quick connect hose coupling. Enables connection and disconnection using a sleeve locking mechanism (no separate tools required). The coupling features a valve for controlling air flow. Provides a sealed connection for pneumatic service when installed using compatible threads and specified pressure/temperature ratings. It is constructed from steel with a trivalent chrome finish and uses NPT threaded connections in a female gender configuration. Compatible for pneumatic compressed air lines within the specified maximum working pressure and temperature range.
Key Features:
- - Application: Pneumatic service
- - Connection type: Female NPT threads with 1/2" -14 thread size
- - Coupling component: Socket
- - Coupling locking type: Sleeve
- - Coupling size: 3/8 in
- - Hose fitting gender: Female
- - Hose fitting size: 1/2 in
- - Includes valve: Yes, tubular type
- - Material: Steel with trivalent chrome finish
- - Seal material: Nitrile
- - Overall length: 2.56 inches
- - Maximum outside diameter: 1.06 inches
- - Interchange type: Tru-Flate-Automotive
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.20
- Package Height: 1.20
- Package Weight: 0.35
