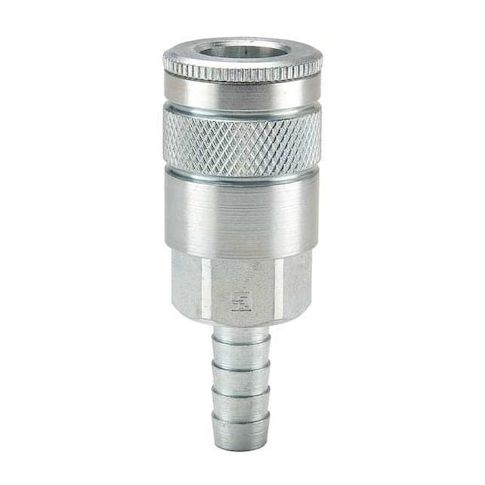

Coupler Body, Steel, Hose Barb, 50 cfm MPN:14-6B

• The PARKER - 14-6B is a hose coupling with sleeve locking mechanism for rapid, tool-free connection and disconnection. It is intended for pneumatic applications and provides tool-free connection and disconnection using a sleeve locking mechanism. The coupling features a male hose barb with a 1/2 in barb size and is compatible with hoses having a 1/2 in inner diameter. Constructed from steel with a trivalent chrome finish, it includes a tubular valve for controlling flow. It is rated maximum working pressure of 300 psi at 70°F and rated for operation within a temperature range of -40°F to 250°F. It has a maximum flow rate of 1,415.84 liters per minute.

  Key Features:


  • - Application: Pneumatic use.
  • - Connection Type: Hose barb with male fitting gender.
  • - Barb Size and Hose I.D.: 1/2 in for hose compatibility.
  • - Coupling Size: 3/8 in with sleeve locking mechanism.
  • - Material: Steel construction with trivalent chrome finish.
  • - Includes tubular valve for flow control.
  • - Maximum working pressure: 300 psi @ 70°F.
  • - Maximum flow rate: 1,415.84 lpm.
  • - Temperature range: -40°F to 250°F.
  • - Overall length: 2.63 in
  • maximum outside diameter: 1.06 in.
  • - Seal Material: Nitrile.
  • - Interchange Type: Tru-Flate-Automotive standard.
