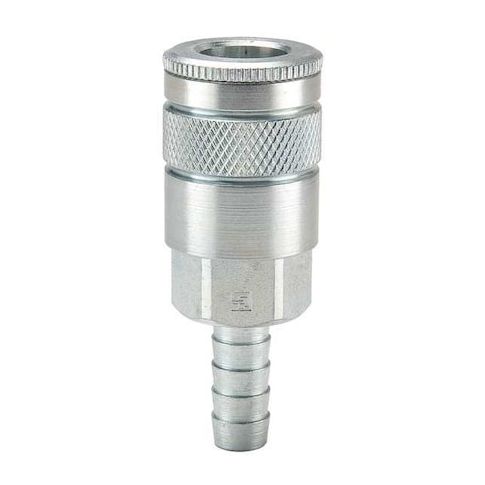

Coupler Body, Steel, Hose Barb, 50 cfm MPN:14-5B
The Parker 14-5B Coupler Body is a reliable and efficient solution for pneumatic applications, featuring a push-to-connect sleeve locking mechanism that allows for easy connection and disconnection without tools. Constructed from durable steel with a trivalent chrome finish, this coupling provides a sealed joint for compressed air lines and includes an integrated tubular valve to control airflow. Suitable for use with 3/8 in hose inner diameter, it supports a maximum working pressure of 300 psi and a flow rate of 1,415.84 L/min, making it ideal for a variety of applications, including automotive, industrial, and manufacturing processes.
Top product features:
- Push hose barb connection type with a sleeve locking mechanism provides a sealed joint when installed to specification for compressed air lines.
- Integrated tubular valve controls airflow during connection.
- Steel body with trivalent chrome coating and nitrile seals ensures durability and resistance to corrosion.
Top product applications:
- Pneumatic use with 3/8 in barb size and hose I.D.
- Automotive standard compatibility
- Compressed air lines
The PARKER - 14-5B is a quick connect hose coupling designed for pneumatic applications, allowing connection and disconnection by using the push-to-connect sleeve locking mechanism without tools (per design). It features a push hose barb connection type with a sleeve locking mechanism, provides a sealed joint when installed to specification for compressed air lines. Constructed from steel with a trivalent chrome finish and nitrile seals, this coupling includes an integrated tubular valve to control airflow during connection. It is rated for use with 3/8 in hose inner diameter (per specification) and supports a maximum working pressure of 300 psi at 70°F. It has a specified maximum flow rate of 1,415.84 L/min when operated within -40°F to 250°F.
Key Features:
- - Application: Pneumatic use with 3/8 in barb size and hose I.D.
- - Connection Type: Push Hose Barb with male hose fitting gender.
- - Coupling Component: Socket with sleeve locking type for secure engagement.
- - Material and Finish: Steel body with trivalent chrome coating and nitrile seals.
- - Includes tubular valve integrated in the coupling to control air flow.
- - is rated for a maximum working pressure of 300 psi at 70°F
- - has a specified maximum flow rate of 1,415.84 L/min (per specification)
- - Overall length of 2.63 inches and maximum outside diameter of 1.06 inches.
- - Interchange type: Tru-Flate-Automotive standard compatibility.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.10
- Package Width: 1.10
- Package Height: 2.60
- Package Weight: 0.25
