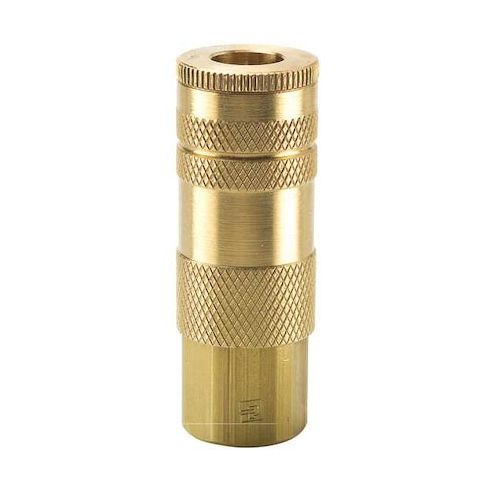

Coupler Body, Brass, FNPT, 1/4 In. Pipe MPN:B73

The PARKER - B73 is for use with pneumatic systems. It is configured for connection and disconnection without tools when used as specified, with a sleeve locking mechanism for rapid connection and disconnection. It features a female hose fitting and connects with a 1/4-inch NPT threaded size in accordance with the Lincoln interchange standard. The coupling includes an integral valve with a tubular valve type to control airflow and provides a sealed connection using nitrile seals. Constructed from brass, this fitting is rated for a maximum working pressure of 300 psi at 70°F and has a maximum flow rate of 707.92 lpm. Temperature rating: -40°F to 250°F.

Key Features:

• - Application: Pneumatic systems
• - Connection Type: 1/4" NPT female thread
• - Coupling Component: Socket
• - Coupling Locking Type: Sleeve
• - Coupling Size: 1/4 in
• - Hose Fitting Gender: Female
• - Hose Fitting Size: 1/4 in
• - Includes Valve: Yes, tubular type
• - Material: Brass
• - Max. Flow Rate: 707.92 lpm
• - Max. Working Pressure @ 70°F: 300 psi
• - Max. Outside Diameter: 7/8 in
• - Overall Length: 2.38 in
• - Seal Material: Nitrile
• - Temperature Range: -40°F to 250°F
