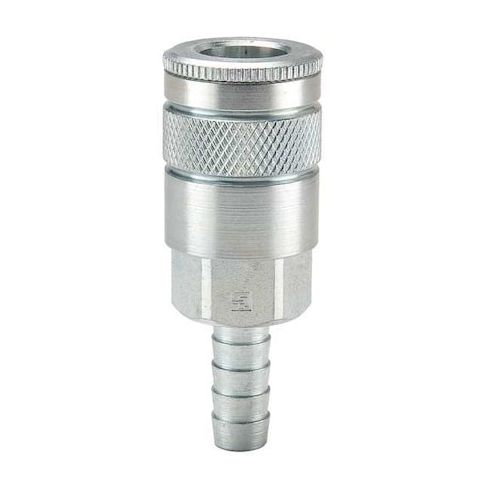

Coupler Body, Steel, Hose Barb, 110 cfm MPN:16-5B
The PARKER 16-5B Quick Connect Hose Coupling is a reliable and efficient solution for pneumatic compressed-air systems. Designed for quick connection and disconnection without tools, this coupling features a male hose barb connection compatible with 3/8 inch inner diameter hoses and a 1/2 inch quick-connect body size. Its steel construction with trivalent chrome finish ensures durability and resistance to corrosion. Ideal for use in a variety of applications, including pneumatic tools, air compressors, and industrial equipment, this coupling provides easy flow control and a maximum working pressure of 300 psi. Perfect for industries requiring high-pressure air supply.
Top product features:
- Male hose barb connection compatible with 3/8 inch inner diameter hoses
- Sleeve locking mechanism for secure connection and disconnection
- Tubular valve for flow control and air pressure regulation
Top product applications:
- Pneumatic compressed-air systems
- Automotive applications
- Industrial processes
The PARKER - 16-5B Quick Connect Hose Coupling is for use with pneumatic compressed-air systems, and is configured for quick connection and disconnection without tools. It features a male hose barb connection compatible with 3/8 inch inner diameter hoses and a 1/2 inch quick-connect body size. The coupling employs a sleeve locking mechanism and includes a tubular valve to control air flow. Its steel construction with trivalent chrome finish is rated for use in compressed-air systems.
Key Features:
- - Material: Steel body with trivalent chrome finish
- - Connection type: Male hose barb designed for 3/8 in hose I.D.
- - Coupling size: 1/2 in with 1/2 in body size
- - Coupling locking type: Sleeve mechanism
- - Includes tubular valve for flow control
- - Maximum working pressure: 300 psi @ 70°F
- - Maximum flow rate: 3,114.85 liters per minute
- - Rated for operation within the specified temperature range (-40°F to 250°F)
- - Overall length: 3.13 inches
- - Seal material: Nitrile
- - Maximum outside diameter: 1 3/16 inches
- - Interchange type: Tru-Flate-Automotive
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.20
- Package Width: 1.20
- Package Height: 3.20
- Package Weight: 0.40
