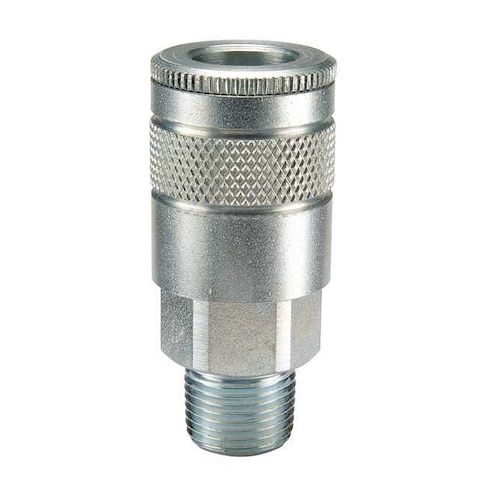

Coupler Body, Steel, MNPT, 1/4 In. Pipe MPN:14C
The Parker 14C Coupler Body is a reliable and efficient solution for joining or separating hoses and equipment in pneumatic applications. Its sleeve-locking mechanism provides a sealed connection under maximum working pressure, while the integrated tubular valve regulates air flow. Constructed from durable steel with a trivalent chrome finish, this coupler is suitable for a wide temperature range and can withstand pressures up to 300 psi. Ideal for use in various industries, including manufacturing, construction, and agriculture, the 14C Coupler Body offers a cost-effective and long-lasting solution for maintaining efficient air flow and system performance.
Top product features:
- Provides a sleeve-locking mechanism for joining or separating hoses or equipment.
- Features an integrated tubular valve for regulating air flow.
- Includes an included nitrile seal for a sealed connection under specified maximum working pressure.
Top product applications:
- Pneumatic use
- Pneumatic system components
- Hose and equipment connections
The PARKER - 14C is used to provide a sleeve-locking mechanism for joining or separating hoses or equipment. It is intended to provide a sealed connection under the specified maximum working pressure (300 psi) and using the included nitrile seal. This steel coupling includes an integrated tubular valve for regulating air flow and features a trivalent chrome finish. It measures 2.38 inches in overall length with a maximum outside diameter of 1 1/16 inches. The fitting connects with a 3/8 inch NPT male thread and a 1/4 inch hose fitting size. It is rated for operation within -40°F to 250°F with a maximum working pressure of 300 psi and has a maximum flow rate of 1,415.84 liters per minute (as specified).
Key Features:
- - Application: Pneumatic use
- - Body Size and Coupling Size: 3/8 inch
- - Connection Type: Male NPT thread
- - Hose Fitting Gender: Male
- - Hose Fitting Size: 1/4 inch
- - Coupling Component: Socket
- - Coupling Locking Type: Sleeve
- - Includes Valve: Yes, Tubular type
- - Material: Steel with trivalent chrome finish
- - Seal Material: Nitrile
- - Max Working Pressure @ 70°F: 300 psi
- - Max Flow Rate: 1,415.84 lpm
- - Temperature Range: -40°F to 250°F
- - Overall Length: 2 3/8 inches
- - Max Outside Diameter: 1 1/16 inches
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 0.90
- Package Height: 0.90
- Package Weight: 0.25
