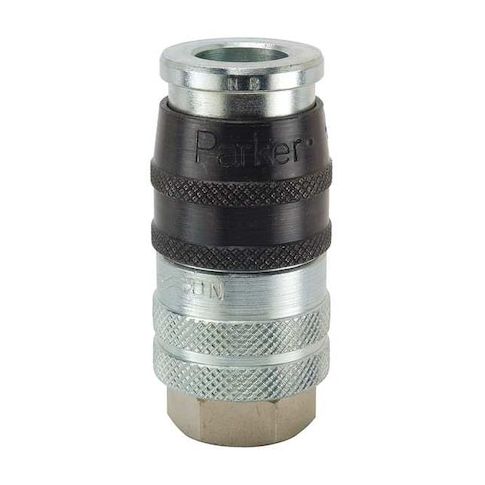

Coupler Body, Steel, 1/2 In. Pipe, 110 cfm MPN:EZ-501-8FP
The Parker EZ-501-8FP Coupler Body is a reliable and efficient solution for pneumatic compressed air systems. This steel coupler features a push-to-connect locking mechanism, eliminating the need for tools, and includes an integrated tubular valve for precise air flow control. Compatible with industrial interchange standards, it can be used in a variety of applications, including manufacturing, construction, and oil and gas industries. Its trivalent chrome finish ensures durability and resistance to corrosion, while its nitrile seals provide a secure connection. With a maximum flow rate of 110 cfm and a working pressure of 300 psi, it's ideal for demanding applications.
Top product features:
- Push-to-connect locking mechanism for connection and disconnection without tools
- Integrated tubular valve to control air flow
- Maximum flow rate of 3,114.85 L/min under rated conditions
Top product applications:
- Air Power Tools
- Pneumatic Air Systems
- Industrial Automation
The PARKER - EZ-501-8FP is designed for use with pneumatic compressed air systems. It provides a push-to-connect locking mechanism for connection and disconnection without tools. This steel coupling features a trivalent chrome finish and includes an integrated tubular valve to control air flow. It is compatible with Industrial interchange standards.
Key Features:
- - Coupling component: Socket
- - Connection type: 1/2" NPT (female)
- - Hose fitting size: 1/2 in, thread size 1/2"-14
- - Maximum flow rate: 3,114.85 L/min (as specified under rated conditions)
- - Maximum working pressure: 300 psi at 70°F (rated)
- - Operating temperature range: -40°F to 250°F (rated)
- - Maximum outside diameter: 1 3/8 in
- - Overall length: 3 in
- - Seal material: Nitrile
- - Coupling size: 1/2 in
- - Valve type: Tubular
Additional Information
- Country of Origin: IL
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.80
- Package Width: 1.20
- Package Height: 1.00
- Package Weight: 0.60
