Coupler Body, Steel, Push On, 25 cfm MPN:EZ-251-6PL

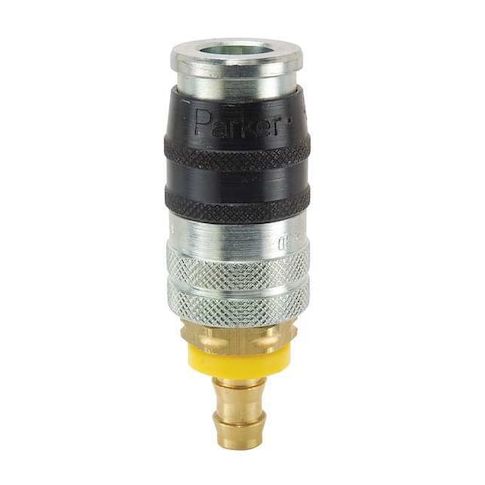

The PARKER - EZ-251-6PL is a push-to-connect hose coupling. It provides push-to-connect locking for connection and disconnection without tools, allowing for rapid, tool-free connection and disconnection of hoses or equipment using a push-to-connect locking mechanism. The coupling is compatible with hoses having a 3/8 in inner diameter and features a hose barb fitting for mechanical attachment to 3/8 in hose. Constructed from steel and finished with trivalent chrome, it is equipped with a tubular valve for air flow regulation during connection and disconnection.

• - Application: Pneumatic
• - Connection Type: Hose Barb
• - Hose Fitting Gender: Male
• - Hose Fitting Size: 3/8 in
• - Barb Size: 3/8 in
• - Body Size (Quick Connect Air Couplings): 1/4"
• - Coupling Size: 1/4 in
• - Coupling Component: Socket
• - Coupling Locking Type: Push-to-Connect
• - Includes Valve: Yes (Tubular valve type)
• - Max. Flow Rate: 707.92 lpm
• - Max. Working Pressure @ 70°F: 300 psi
• - Overall Length: 3.19 in
• - Max. Outside Diameter: 1 in
• - Seal Material: Nitrile
• - Temperature Range: -40°F to 250°F
• - Interchange Type: Industrial
