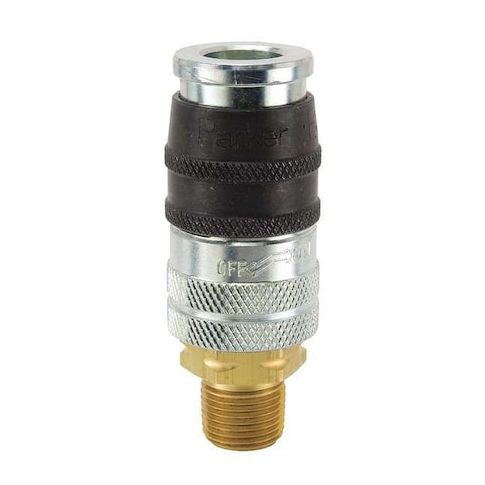

Coupler Body, Steel, MNPT, 1/4 In. Pipe MPN:EZ-251-4MP
The PARKER EZ-251-4MP is a reliable and efficient hose coupling designed for push-to-connect pneumatic applications. This coupling enables quick and easy connection and disconnection using a push-to-connect locking mechanism, providing a secure seal for compressed air lines. Its integrated tubular valve regulates airflow upon connection, making it ideal for applications where precise airflow control is necessary. Suitable for use in a variety of industrial settings, including manufacturing, material handling, and pneumatic conveying systems, this coupling offers a high level of versatility and reliability, ensuring smooth and efficient operation within a wide temperature range of -40°F to 250°F.
Top product features:
- The coupling provides a seal for compressed air lines using Nitrile seal material.
- The coupling has an integrated tubular valve for regulating airflow upon connection.
- The coupling enables connection and disconnection using a push-to-connect locking mechanism.
Top product applications:
- Pneumatic
- Push-to-connect pneumatic applications
- Compressed air lines
The PARKER - EZ-251-4MP is a hose coupling for push-to-connect pneumatic applications. It enables connection and disconnection using a push-to-connect locking mechanism. The coupling provides a seal for compressed air lines (Nitrile seal material) and has an integrated tubular valve for regulating airflow upon connection (tubular type). Constructed of steel with a trivalent chrome finish, it is compatible with the industrial interchange standard and has an operating temperature range: -40°F to 250°F.
Key Features:
- - Application: Pneumatic
- - Coupling component: Socket
- - Coupling locking type: Push-to-Connect
- - Hose fitting gender: Male
- - Hose fitting size: 1/4 in
- - Body size (air coupling): 1/4 in
- - Coupling size: 1/4 in
- - Connection type: NPT thread
- - Thread size: 1/4"-18
- - Material: Steel with trivalent chrome finish
- - Seal material: Nitrile
- - Includes valve: Yes, tubular type
- - Max. flow rate: 707.92 liters per minute
- - Max. working pressure: 300 psi at 70°F
- - Max. outside diameter: 1 in
- - Overall length: 2.88 in
- - Interchange type: Industrial
- - Operating temperature range: -40°F to 250°F
- - Barbed end: No
Additional Information
- Country of Origin: IL
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.30
