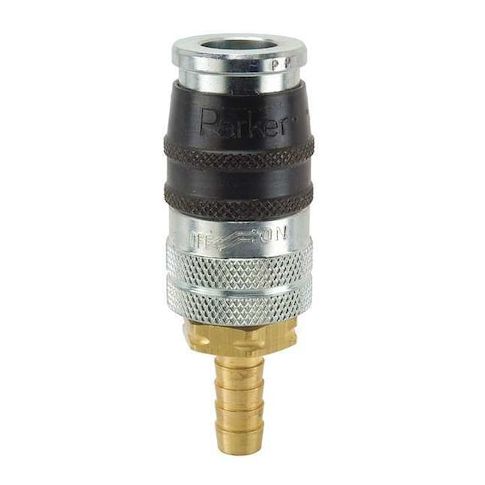

Coupler Body, Steel, Hose Barb, 25 cfm MPN:EZ-251-4HB
Streamline your pneumatic operations with the PARKER EZ-251-4HB Coupler Body, a push-to-connect hose coupling designed for easy connection and disconnection without additional tools. Constructed from durable steel with a trivalent chrome finish, this coupling features a 1/4 inch hose barb connection and integrated tubular valve for precise air flow control. Suitable for pneumatic applications, it offers reliable performance in a wide range of operating temperatures and pressures. Perfect for use in manufacturing, automation, and other industries, this coupling ensures efficient and leak-free connections, minimizing downtime and maximizing productivity.
Top product features:
- Push-to-connect operation allows for connection and disconnection without additional tools.
- The coupling includes a seal system intended to resist air leakage when properly installed.
- The tubular valve provides flow control.
Top product applications:
- Pneumatic use
- Pneumatic applications
- Pneumatic hookups
The PARKER - EZ-251-4HB is a push-to-connect hose coupling for pneumatic applications, configured for push-to-connect operation for connection and disconnection without additional tools, and includes a seal system intended to resist air leakage when properly installed. Constructed from steel with a trivalent chrome finish, it includes an integrated tubular valve to control air flow. The coupling features a 1/4 inch hose barb connection and mates with a 1/4 inch industrial-interchange socket, compatible with 1/4 in industrial-interchange sockets for standard pneumatic hookups (as specified). Rated maximum working pressure: 300 psi at 70°F. Rated maximum flow rate: 707.92 lpm within a rated operating temperature range of -40°F to 250°F.
Key Features:
- - Application: Pneumatic use
- - Hose barb size and hose fitting size: 1/4 in
- - Connection type: Hose Barb
- - Coupling component: Socket
- - Coupling locking type: Push-to-Connect
- - Includes tubular valve for flow control
- - Material: Steel with trivalent chrome finish
- - Rated maximum working pressure: 300 psi at 70°F
- - Rated maximum flow rate: 707.92 lpm
- - Rated operating temperature range: -40°F to 250°F
- - Overall length: 3.19 in
- - Seal material: Nitrile
- - Interchange type: Industrial
Additional Information
- Country of Origin: IL
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.30
