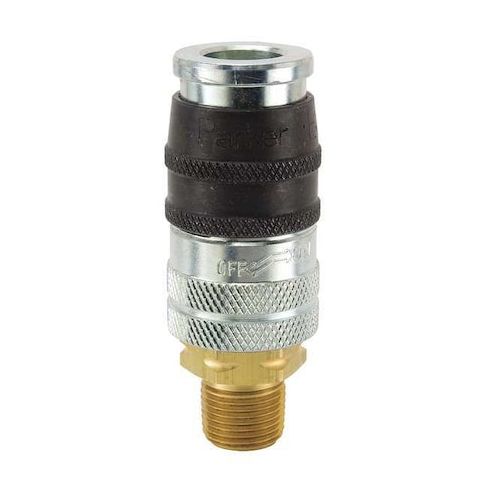

Coupler Body, Steel, 1/2 In. Pipe, 110 cfm MPN:EZ-501-8MP
The Parker EZ-501-8MP is a reliable and efficient quick connect hose coupling designed for pneumatic applications. Its push-to-connect locking mechanism provides a sealed connection, while the integrated tubular valve offers flow control. Suitable for a wide range of industrial applications, including manufacturing, construction, and maintenance, this coupling is rated for a maximum flow rate of 110 cfm and operates within a temperature range of -40°F to 250°F. Its steel construction with trivalent chrome finish ensures durability and resistance to corrosion, making it an ideal choice for demanding environments.
Top product features:
- Push-to-connect locking mechanism for hose connection and disconnection, providing a sealed connection.
- Integrated tubular valve for flow control.
- Steel construction with trivalent chrome finish for durability.
Top product applications:
- Automotive repair and maintenance
- Industrial manufacturing and production
- Pneumatic power tool operation
The PARKER - EZ-501-8MP is a quick connect hose coupling designed for pneumatic applications. It is rated for pneumatic service with a maximum working pressure of 300 psi at 70°F and includes a push-to-connect locking mechanism for hose connection and disconnection, providing a sealed connection. Includes an integrated tubular valve for flow control and is compatible with industrial interchange standards. Is rated for a maximum flow rate of 3,114.85 L/min. Temperature operating range: -40°F to 250°F.
Key Features:
- - Coupling size and hose fitting size: 1/2 in
- - Connection type: 1/2" -14 NPT male threads
- - Coupling component includes a socket
- - Push-to-connect locking mechanism
- - Hose fitting gender: Male
- - Material: Steel with trivalent chrome finish
- - Seal material: Nitrile
- - Overall length: 3.63 in
- - Maximum outside diameter: 1 3/8 in
- - Includes tubular valve for flow control
Additional Information
- Country of Origin: IL
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.40
- Package Width: 1.40
- Package Height: 3.50
- Package Weight: 0.65
