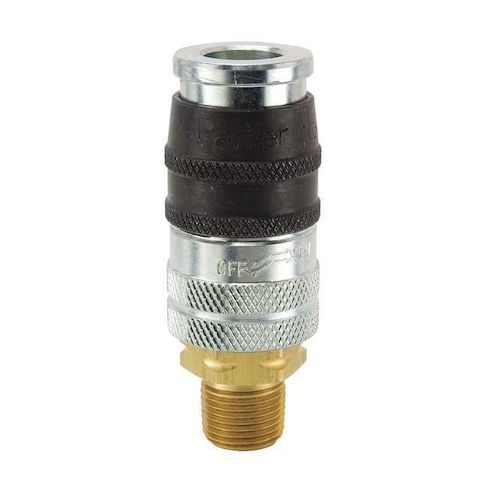

Coupler Body, Steel, MNPT, 3/8 In. Pipe MPN:EZ-371-6MP

The PARKER - EZ-371-6MP is a quick connect hose coupling for pneumatic applications. The coupling is constructed of steel with a trivalent chrome finish and includes a valve component with a tubular valve type. It forms a connection intended to be compatible with pneumatic hose coupling seals. It is specified for use with Industrial interchange (as defined by the manufacturer’s interchange specification) and uses a push-to-connect locking mechanism for hose coupling engagement. The fitting has a male hose fitting gender with a 3/8 in size and a 3/8 in body size for quick connect air couplings.

Key Features:

• - Application: Pneumatic systems
• - Material: Steel with trivalent chrome finish
• - Connection Type: NPT with 3/8"-18 thread size
• - Hose Fitting Size: 3/8 in, Male gender
• - Coupling Component: Socket
• - Coupling Locking Type: Push-to-Connect
• - Coupling Size: 3/8 in
• - Includes Valve: Yes, Tubular valve type
• - Interchange Type: Industrial
• - Maximum Flow Rate: 1,415.84 liters per minute (lpm)
• - Maximum Working Pressure: 300 psi at 70°F
• - Operating Temperature Range: -40°F to 250°F
• - Maximum Outside Diameter: 1 3/16 in
• - Overall Length: 3 1/8 in
• - Seal Material: Nitrile
• - Barbed Hose Tail: No
