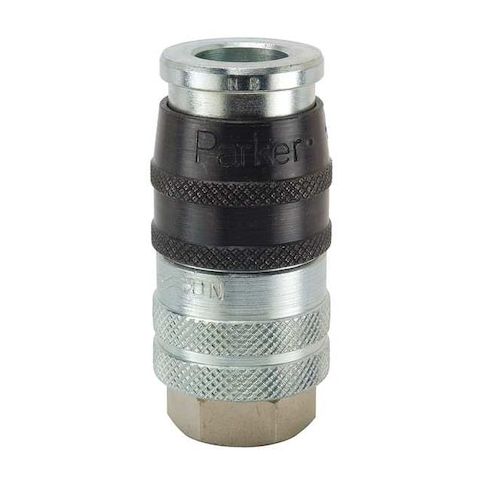

Coupler Body, Steel, FNPT, 3/8 In. Pipe MPN:EZ-251-6FP
The PARKER EZ-251-6FP is a reliable and efficient quick connect hose coupling designed for industrial applications. Its push-to-connect locking mechanism enables seamless connection and disconnection of compatible hoses or equipment, ensuring a secure and leak-free seal. Made from durable steel with a trivalent chrome finish, this coupling features nitrile seals and a tubular valve to maintain sealing performance. Ideal for use in various industries, including manufacturing, HVAC, and construction, this coupling supports high-pressure applications up to 300 psi and flow rates of up to 707.92 lpm, making it a valuable addition to any hydraulic or pneumatic system.
Top product features:
- Push-to-connect locking mechanism enables easy and secure connection and disconnection of compatible hoses or equipment.
- Nitrile seals and tubular valve support sealed connections and maintain sealing performance over time.
- Integrated tubular valve allows for controlled flow and helps prevent leakage.
Top product applications:
- Industrial Hydraulic Systems
- Automotive Brake Systems
- Aerospace Fuel Systems
The PARKER - EZ-251-6FP is a quick connect hose coupling. It features a push-to-connect locking mechanism. It enables connection and disconnection of compatible hoses or equipment. It includes nitrile seals and a tubular valve to support sealed connections. Made from steel with a trivalent chrome finish, this coupling includes an integrated tubular valve and features nitrile seals intended to help maintain sealing performance. It is compatible with the Industrial interchange standard. Rated maximum working pressure: 300 psi at 70°F. Rated maximum flow rate: 707.92 lpm.
- - Coupling Component: Socket
- - Connection Type: Female NPT thread sized at 3/8"-18
- - Body Size and Coupling Size: 1/4 in
- - Hose Fitting Size: 3/8 in, Female gender
- - Coupling Locking Type: Push-to-Connect
- - Material: Steel with Trivalent Chrome finish
- - Includes Valve: Yes, Tubular valve type
- - Maximum working pressure rating: 300 psi at 70°F
- - Maximum flow rate rating: 707.92 lpm
- - Overall Length: 2.69 in (2 11/16 in)
- - Max. Outside Diameter: 1 in
- - Seal Material: Nitrile
- - Temperature Range: -40°F to 250°F
Additional Information
- Country of Origin: IL
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 0.80
- Package Height: 0.80
- Package Weight: 0.30
