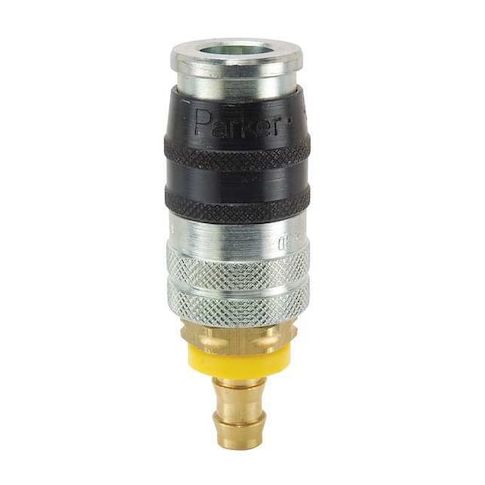

Coupler Body, Steel, Push On, 25 cfm MPN:EZ-251-4PL
The Parker EZ-251-4PL Coupler Body is a reliable and efficient solution for pneumatic applications, offering a push-to-connect mechanism for tool-free connection and disconnection of hoses. Constructed of steel with a trivalent chrome finish, this coupler features a nitrile seal for a sealed joint and includes a valve component to control air flow. With a maximum flow rate of 25 cfm and a maximum rated working pressure of 300 psi, this coupler is ideal for use in air lines and similar fluid transfer systems, making it a versatile and effective choice for industries such as manufacturing, construction, and automotive.
Top product features:
- Push-to-connect locking mechanism for tool-free connection and disconnection of a hose
- Includes a valve component to control air flow
- Nitrile seal for formation of a sealed joint
Top product applications:
- Pneumatic
- Air lines
- Fluid transfer systems
The PARKER - EZ-251-4PL is a hose coupling with push-to-connect mechanism for tool-free connection and disconnection of a hose in pneumatic applications. It features a push-to-connect locking mechanism and includes a valve component to control air flow. The coupling is compatible with hose inner diameter of 1/4 in (barb size: 1/4 in
- hose fitting size: 1/4 in). Constructed of steel with a trivalent chrome finish
- includes a nitrile seal for formation of a sealed joint for use in air lines and similar fluid transfer systems. Compatible with pneumatic air line applications and similar fluid transfer systems within the specified working pressure range.
Key Features:
- - Application: Pneumatic
- - Body and Coupling Size: 1/4 in
- - Connection Type: Hose Barb
- - Coupling Component: Socket
- - Coupling Locking Type: Push-to-Connect
- - Hose Fitting Gender: Male
- - Includes Valve: Yes, Tubular Valve Type
- - Material: Steel with Trivalent Chrome finish
- - Maximum Flow Rate (Rated): 707.92 liters per minute
- - Maximum Rated Working Pressure at 70°F: 300 psi
- - Seal Material: Nitrile
- - Overall Length: 3 in
- - Maximum Outside Diameter: 1 in
- - Interchange Type: Industrial
Additional Information
- Country of Origin: IL
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 3.10
- Package Weight: 0.30
