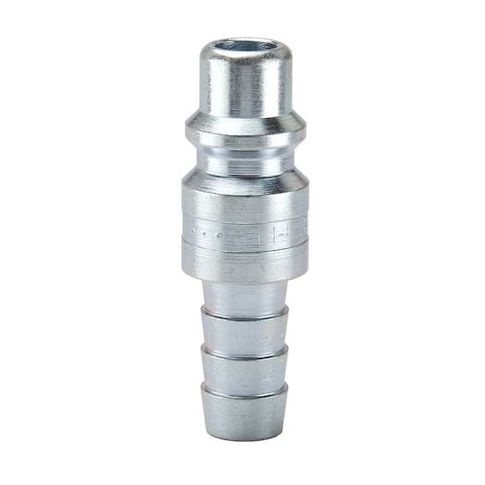

QuickCnnctCoupling, 2-1/2", Plug, Steel MPN:H5G-F
The Parker H5G-F Coupler Plug is a reliable and efficient solution for pneumatic systems. Designed for easy connection and disconnection without the need for a separate tool, this coupler plug features a steel construction with a trivalent chrome finish and a hose barb connection type. Its compact size and high flow rate make it ideal for use in a variety of applications, including manufacturing, construction, and HVAC. With a maximum working pressure of 300 psi and operating temperature range of -40°F to 250°F, this coupler plug provides a secure and reliable connection for pneumatic hoses, ensuring efficient and safe operation.
Top product features:
- It supports connection and disconnection without a separate tool due to the quick-connect coupling design.
- It is constructed from steel with a trivalent chrome finish.
- It provides sealed connections in pneumatic hose applications within the specified pressure and temperature ranges.
Top product applications:
- Pneumatic
- Hose barb connection
- Male hose fitting
The PARKER - H5G-F is a hose coupling for rated use in pneumatic systems. It supports connection and disconnection without a separate tool (per the quick-connect coupling design) and features a male hose fitting with a hose barb connection type. The coupling is constructed from steel with a trivalent chrome finish. It is compatible with hoses having a 1/2 in inner diameter and uses a 3/4 in industrial interchange coupling size and body size for the air connection. It is intended to provide sealed connections in pneumatic hose applications within the specified pressure and temperature ranges.
Key Features:
- - Application: Pneumatic
- - Hose barb connection with a 1/2 in barb size
- - Male hose fitting gender
- - Coupling size and body size of 3/4 in
- - Material: Steel with trivalent chrome finish
- - Maximum flow rate: 3,114.85 liters per minute
- - Maximum working pressure at 70°F: 300 psi
- - Operating temperature range: -40°F to 250°F
- - Overall length: 2.50 inches
- - Maximum outside diameter: 15/16 inch
- - Includes no valve component
- - Interchange type: Industrial
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.20
