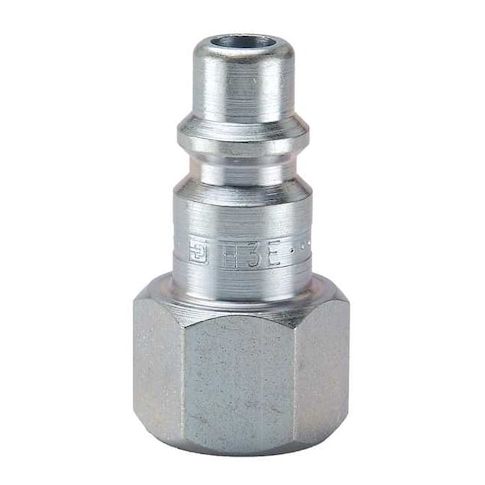

Coupler Plug, Steel, 1 In. Pipe, 110 cfm MPN:H3G-J
The Parker H3G-J Quick Connect Plug offers a reliable and efficient connection solution for compressed air systems and other pneumatic media. Its push/pull locking mechanism ensures a pressure-rated, sealed connection that can withstand temperatures from -40°F to 250°F and maximum working pressures. Suitable for industrial applications, this plug features a 1 in female NPT thread and a 3/4 in body, making it ideal for connecting hoses or equipment in manufacturing, assembly, and other high-pressure environments. With its trivalent chrome plating and industrial standard design, this plug provides a durable and long-lasting connection solution.
Top product features:
- Push/pull locking mechanism for connection and disconnection of hoses or equipment
- Pressure-rated, sealed connection for use with compressed air systems and other specified pneumatic media
- Trivalent Chrome plating for corrosion resistance
Top product applications:
- Compressed Air Systems
- Pneumatic Media Applications
- Industrial Hose Connections
The PARKER - H3G-J provides a push/pull locking mechanism for connection and disconnection of hoses or equipment using a push/pull locking mechanism. This provides a pressure-rated, sealed connection for use with compressed air systems and other specified pneumatic media (within the stated temperature range and maximum working pressure).
Key Features:
- - Connection Type: NPT thread.
- - Hose Fitting Gender: Female.
- - Hose Fitting Size: 1 in.
- - Coupling Size: 3/4 in, with a body size of 3/4 in for the air coupling.
- - Interchange Type: Industrial standard.
- - Finish: Trivalent Chrome plating.
- - Maximum Outside Diameter: 1 13/16 in.
- - Overall Length: 2 7/16 in.
- - Temperature Range: -40°F to 250°F.
- - Thread Size: 1"-11-1/2.
- - Does not include an integrated valve.
- - Barbed design: No.
- - Coupling Component: Plug type.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.00
- Package Height: 2.00
- Package Weight: 0.55
