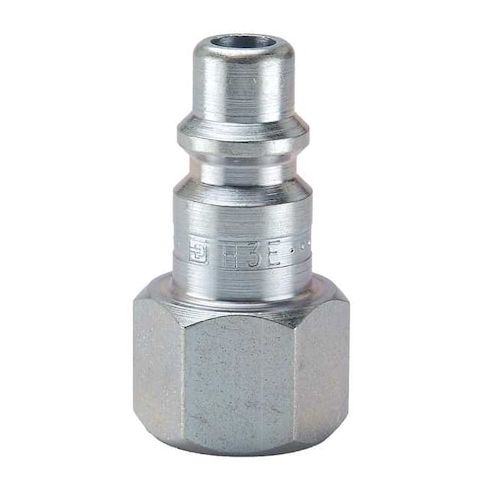

Coupler Plug, Steel, FNPT, 1/2 In. Pipe MPN:H3E-F
The Parker H3E-F Coupler Plug is a reliable and efficient solution for pneumatic applications. This steel coupler plug enables rapid, tool-free connection and disconnection of hoses or equipment using a push/pull mechanism, ensuring a sealed connection for pneumatic air lines. Suitable for use in a variety of industries, including manufacturing, construction, and oil and gas, this coupler plug is rated for use up to 300 psi at 70°F and operates within a temperature range of -40°F to 250°F. Its compact design and trivalent chrome finish make it an ideal choice for applications where durability and ease of use are crucial.
Top product features:
- Quick connect hose coupling enables rapid, tool-free connection and disconnection of hoses or equipment using a push/pull mechanism.
- Configured to form a sealed connection for pneumatic air lines when installed in accordance with applicable standards and specifications.
- Constructed from steel with a trivalent chrome finish.
Top product applications:
- Pneumatic air lines
- Pneumatic equipment connections
- Air compressor hookups
The PARKER - H3E-F is a quick connect hose coupling designed for pneumatic applications. It enables rapid, tool-free connection and disconnection of hoses or equipment using a push/pull mechanism, is configured to form a sealed connection for pneumatic air lines when installed in accordance with the applicable standards and specifications. This coupling is constructed from steel with a trivalent chrome finish and features a female hose fitting connection. It is rated for use up to a maximum working pressure of 300 psi at 70°F, and is rated for operation within a temperature range of -40°F to 250°F.
Key Features:
- - Coupling size: 3/8 in, with hose fitting size: 1/2 in
- - Connection type: NPT thread with a 1/2"-14 thread size
- - Coupling component: Plug, female hose fitting gender
- - Maximum flow rate: 1,415.84 liters per minute
- - Overall length: 1.88 in and maximum outside diameter: 1.19 in
- - Finish: Trivalent chrome coating
- - Barbed end: No
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 1.20
- Package Height: 1.20
- Package Weight: 0.15
