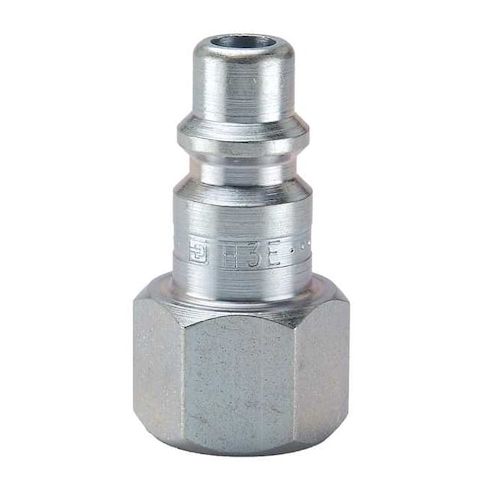

Coupler Plug, Steel, FNPT, 3/8 In. Pipe MPN:H3E

The PARKER - H3E is a quick connect hose coupling designed for pneumatic applications. It enables rapid, tool-free connection and disconnection of hoses or equipment using a push/pull locking mechanism. Constructed from steel with a trivalent chrome finish, it is rated for pneumatic air line service at up to 300 psi (working pressure at 70°F), and is manufactured with a sealing interface for hose/coupling connection. It is compatible with industrial interchange standards and is intended for use with pneumatic air lines using compatible 3/8 in (hose fitting size) and NPT (connection type) fittings. The coupling component is a plug with a female hose fitting, featuring NPT connection type and a thread size of 3/8"-18. The product operates within a temperature range of -40°F to 250°F and supports a maximum working pressure of 300 psi at 70°F.

Key Features:

• - Application: Pneumatic
• - Coupling Size: 3/8 in
• - Body Size - Quick Connect Air Couplings: 3/8 in
• - Hose Fitting Size: 3/8 in
• - Hose Fitting Gender: Female
• - Connection Type: NPT
• - Thread Size: 3/8"-18
• - Material: Steel
• - Finish/Coating: Trivalent Chrome
• - Interchange Type: Industrial
• - Includes Valve: No
• - Max. Flow Rate: 1,415.84 lpm
• - Max. Working Pressure @ 70 F: 300 psi
• - Overall Length: 1.75 in
• - Max. Outside Diameter: 15/16 in
• - Temperature Range: -40°F to 250°F
• - Barbed: No
• - Coupling Component: Plug
