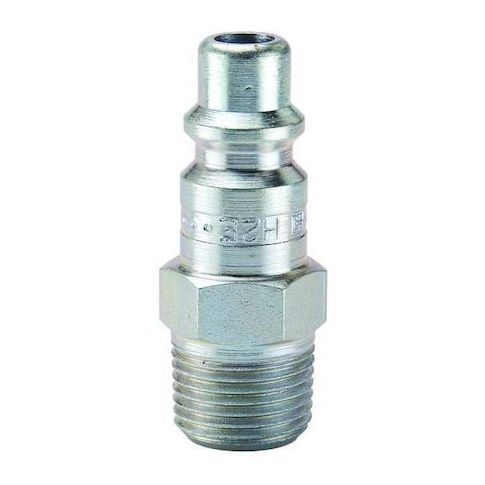

Coupler Plug, Steel, MNPT, 3/8 In. Pipe MPN:H2E
The Parker H2E Quick Connect Plug is a reliable and efficient solution for pneumatic applications. Its push/pull locking mechanism provides a sealed flow path for compressed air or fluid lines, making it ideal for use in industrial settings where quick connection and disconnection are necessary. Constructed of durable steel with a trivalent chrome finish, this plug-type coupling can withstand temperatures from -40°F to 250°F and supports a maximum working pressure of 300 psi. Suitable for applications such as pneumatic tools, machinery, and equipment, the H2E Quick Connect Plug offers a convenient and leak-free connection solution.
Top product features:
- Provides a sealed flow path for compressed air or fluid lines using a push/pull locking mechanism.
- Constructed of steel with a trivalent chrome finish for surface treatment.
- Supports a maximum working pressure of 300 psi at 70°F.
Top product applications:
- Pneumatic service
- Industrial applications
- Compressed air or fluid lines
The PARKER - H2E is a quick-connect hose coupling designed for pneumatic applications. It provides connection and disconnection using a push/pull locking mechanism, providing a sealed flow path for compressed air or fluid lines. Constructed of steel with a trivalent chrome finish, this plug-type coupling is is compatible with 3/8"-18 NPT male and 3/8 inch hose connection interfaces and operates within a temperature range of -40°F to 250°F. It supports a maximum working pressure: 300 psi at 70°F
- maximum flow rate: 1,415.84 liters per minute. The device connects using a 3/8"-18 NPT male threaded fitting and mates with 3/8 inch hose connections.
Key Features:
- - Material: Steel construction with trivalent chrome finish for surface treatment.
- - Coupling Component: Plug (male half of the quick-connect fitting).
- - Connection Type: 3/8"-18 NPT male thread.
- - Size: 3/8 inch coupling and hose fitting sizes.
- - Maximum Working Pressure: 300 psi at 70°F.
- - Maximum Flow Rate: 1,415.84 lpm.
- - Operating Temperature Range: -40°F to 250°F.
- - Overall Length: 1.88 inches.
- - Maximum Outside Diameter: 13/16 inch.
- - Application: Pneumatic service.
- - Interchange Type: Industrial standard.
- - Hose Fitting Gender: Male.
- - Barbed: No.
- - Includes Valve: No.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 0.80
- Package Height: 0.80
- Package Weight: 0.10
