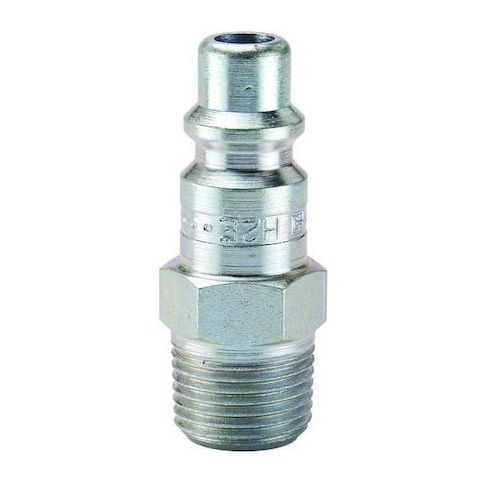

Coupler Plug, Steel, MNPT, 1/4 In. Pipe MPN:H0E
The Parker H0E Quick Connect Plug is a reliable and efficient solution for pneumatic applications. Designed for manual connection and disconnection, this plug-type fitting is ideal for industries such as manufacturing, automotive, and aerospace. Constructed from durable steel with a trivalent chrome finish, it provides a secure and long-lasting connection. With a maximum working pressure of 300 psi and a temperature range of -40°F to 250°F, it can handle demanding applications. Its compact size and lightweight design make it easy to integrate into existing systems, reducing downtime and increasing productivity. Perfect for air lines, pneumatic systems, and more.
Top product features:
- It is configured for manual (tool-free) connection and disconnection of compatible hoses using an industrial-style interchange system.
- The fitting is rated for pneumatic service and is intended to form a pressure-retaining connection when installed to the specified standards for air lines.
- It features a male NPT threaded connection.
Top product applications:
- Pneumatic service compatible
- Pneumatic applications
- Industrial pneumatic systems
The PARKER - H0E is a quick connect hose coupling designed for pneumatic applications. It is configured for manual (tool-free) connection and disconnection of compatible hoses using an industrial-style interchange system. Constructed from steel with a trivalent chrome finish, this plug-type fitting is rated for pneumatic service and is intended to form a pressure-retaining connection when installed to the specified standards for air lines. It features a nominal hose fitting size of 1/4 inch and a coupling size of 3/8 inch with a male NPT threaded connection. The fitting is rated for operation within a temperature range of -40°F to 250°F and supports a maximum working pressure of 300 psi, has a maximum flow rate of 1,415.84 liters per minute (per specified conditions).
Key Features:
- - Application: Pneumatic service compatible
- - Material: Steel body with trivalent chrome plating for surface treatment
- - Connection Type: Male NPT thread, size 1/4" -18
- - Coupling Component: Plug with Industrial interchange type
- - Hose Fitting Size: 1/4 in
- Coupling Size: 3/8 in
- Body Size: 3/8 in
- - Max. Working Pressure: 300 psi at 70°F
- - Max. Flow Rate: 1,415.84 liters per minute
- - Overall Length: 1.88 in (1 7/8 in)
- - Max. Outside Diameter: 11/16 in
- - Temperature Range: -40°F to 250°F
- - Includes Valve: No
- - Barbed: No
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 0.70
- Package Height: 0.70
- Package Weight: 0.10
