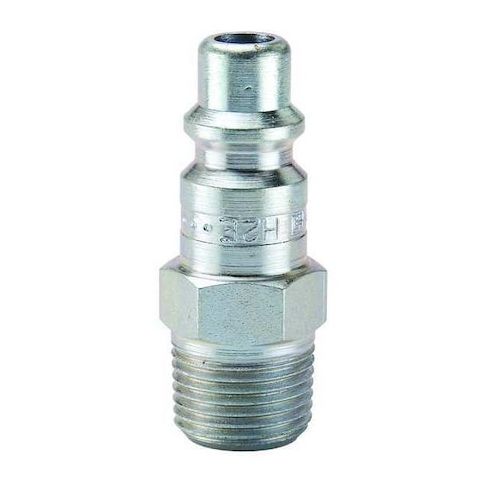

Coupler Plug, Steel, MNPT, 1/2 In. Pipe MPN:H2E-F
The Parker H2E-F Quick Connect Plug is a reliable and efficient solution for pneumatic applications. Designed for tool-free connection and disconnection, this plug features a push/pull locking mechanism that provides a secure seal at the connection interface. With a maximum working pressure of 300 psi and an operating temperature range of -40°F to 250°F, this plug is suitable for a wide range of applications, including industrial and manufacturing settings. Its compact size and durable steel construction with trivalent chrome finish make it an ideal choice for applications where quick and easy connections are essential.
Top product features:
- Tool-free connection and disconnection using a push/pull locking mechanism
- Seal at the connection interface for leak resistance
- Maximum working pressure of 300 psi at 70°F
Top product applications:
- Pneumatic applications
- Tool-free connection and disconnection
- Industrial interchange standard
The PARKER - H2E-F is a quick-connect hose coupling for pneumatic applications. It supports tool-free connection and disconnection using a push/pull locking mechanism, providing a seal at the connection interface (leak resistance not guaranteed). Maximum working pressure: 300 psi at 70°F. Operating temperature range: -40°F to 250°F. Constructed from steel with a trivalent chrome finish, this coupling operates within these specifications and connects with a 1/2"-14 NPT male threaded connection, conforming to the Industrial interchange standard.
Key Features:
- - Coupling Type: Plug (male half of the quick connect fitting)
- - Application: Pneumatic
- - Material: Steel with trivalent chrome finish
- - Hose Fitting Gender: Male
- - Hose Fitting Size: 1/2 in
- - Thread Size: 1/2"-14 (male NPT)
- - Coupling Size: 3/8 in
- - Max. Working Pressure: 300 psi @ 70°F
- - Max. Flow Rate: 1,415.84 liters per minute
- - Overall Length: 2.06 in (2 1/16 in)
- - Max. Outside Diameter: 1 in
- - Temperature Range: -40°F to 250°F
