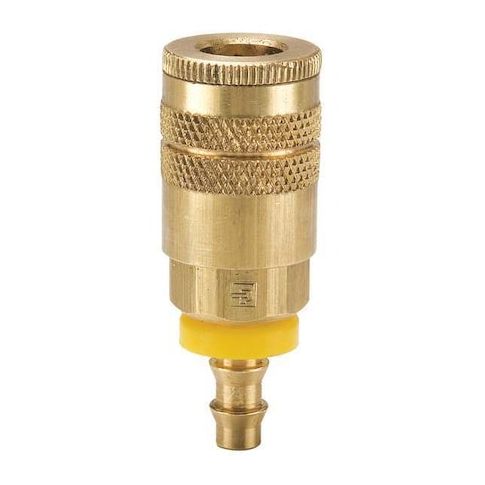

Coupler Body, Brass, Push On, 25 cfm MPN:B20-5BP
Coupler Body, Brass, Push On, 25 cfm
Hose coupling model PARKER - B20-5BP for pneumatic air line connections. It enables hose coupling connection/disconnection using the sleeve locking mechanism (tool-free per design). Made from brass, it includes an integrated tubular valve to control flow and provides a sealed connection for compressed air lines. The fitting is compatible with hoses that have a 3/8 in inner diameter and features a hose barb connection with male gender.
Key Features:
- - Material: Brass construction for durability.
- - Connection Type: Hose barb with male fitting.
- - Barb Size: 3/8 in, matching hose inner diameter.
- - Coupling Size: compatible with 1/4 in industrial quick-connect systems.
- - Coupling Locking Type: Sleeve mechanism.
- - Includes Valve: Yes, includes an integrated tubular valve to control flow.
- - Maximum rated flow rate: 707.92 L/min.
- - Rated maximum working pressure: 300 psi at 70°F.
- - Rated operating temperature range: -40°F to 250°F.
- - Overall Length: 2.5 in.
- - Seal Material: Nitrile for sealing performance.
- - Interchange Type: Industrial standard for compatibility.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 0.90
- Package Height: 0.90
- Package Weight: 0.20
