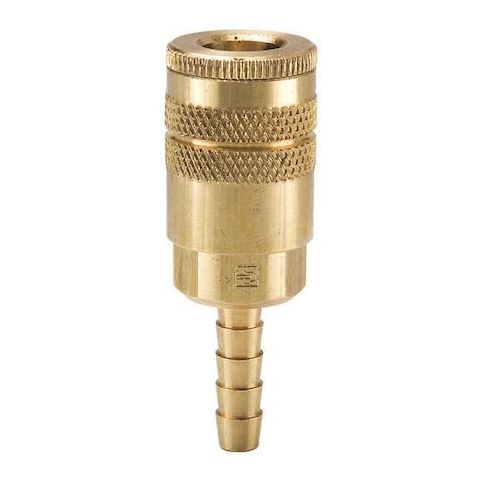

Coupler Body, Brass, Hose Barb, 25 cfm MPN:B20-5B

The PARKER - B20-5B is a quick connect hose coupling designed for pneumatic applications, enabling rapid tool-free connection and disconnection of hoses or equipment. Constructed from brass with nitrile seals, it provides a connection using nitrile seals and is rated for pneumatic fluid sealing within the specified operating parameters. The coupling features a sleeve locking mechanism and includes a tubular valve to control airflow. It conforms to the Industrial interchange standard as specified.

Key Features:

• - Material: Brass with nitrile seal for fluid sealing.
• - Size: 3/8 in hose barb, 1/4 in coupling body and size.
• - Connection Type: Hose barb with male hose fitting gender.
• - Coupling Component: Socket.
• - Locking Mechanism: Sleeve type.
• - Valve Included: Yes, tubular valve type.
• - Maximum Flow Rate: 707.92 liters per minute.
• - Maximum Working Pressure: 300 psi at 70°F.
• - Temperature Range: -40°F to 250°F.
• - Overall Length: 2.50 inches.
• - Maximum Outside Diameter: 15/16 inches.
• - Application: Pneumatic systems.
• - Interchange Type: Industrial standard.
