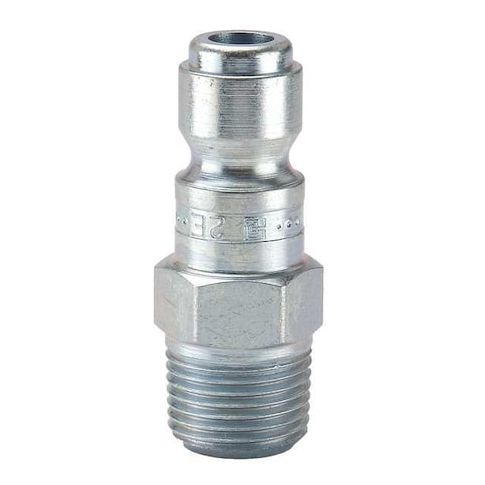

Coupler Plug, Steel, MNPT, 1/4 In. Pipe MPN:2C

• The PARKER - 2C is a steel Quick Connect Hose Coupling designed for pneumatic applications. It supports connection and disconnection using a sleeve-type locking mechanism without requiring hand tools (as applicable to the intended coupling use) and is compatible with sealed pneumatic/fluid connections when mated with compatible fittings

• sealing is provided by the specified nitrile seal. Compatible with 1/4-inch NPT threaded connections and hose fittings, this coupling supports connection/disconnection of hoses using compatible 1/4 in NPT fittings. The product is rated for operation within a temperature range of -40°F to 250°F and is rated for a maximum working pressure of 300 psi at 70°F.

  Key Features:


  • - Coupling component: Plug with a sleeve-type locking mechanism
  • - Connection type: Male NPT thread, 1/4"-18 size
  • - Hose fitting size and coupling size: 1/4 in
  • - Material: Steel construction with trivalent chrome finish
  • - Seal material: Nitrile for fluid and air sealing
  • - Maximum flow rate: 707.92 liters per minute
  • - Maximum outside diameter: 11/16 in
  • - Overall length: 1 5/8 in
  • - Interchange type: Tru-Flate-Automotive
