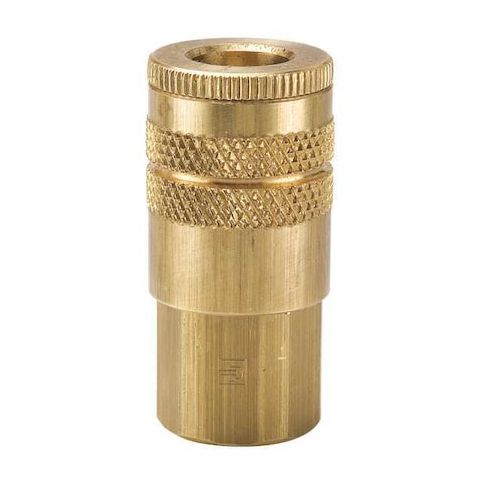

Coupler Body, Brass, FNPT, 3/8 In. Pipe MPN:B25
The PARKER B25 Coupler Body is a reliable and efficient solution for pneumatic applications. Designed for easy connection and disconnection without tools, this brass coupler features a sleeve locking mechanism and nitrile seals to provide secure sealing at high pressures and temperatures. With an integrated tubular valve, it allows for precise control of airflow. Suitable for a wide range of industrial applications, including manufacturing, construction, and HVAC, this coupler meets industrial interchange standards and offers a maximum working pressure of 300 psi and a flow rate of 1,415.84 L/min, making it an ideal choice for demanding pneumatic systems.
Top product features:
- Quick-disconnect and reconnect design allows for easy connection and disconnection without tools.
- Nitrile seals provide sealing at specified pressure and temperature ranges.
- Integrated tubular valve controls airflow.
Top product applications:
- Pneumatic
- Pneumatic applications
- Hose coupling
The PARKER - B25 is a quick-disconnect and reconnect design hose coupling designed for pneumatic applications. It can be connected and disconnected without tools (as applicable to the specified sleeve locking mechanism) using a sleeve locking mechanism, with nitrile seals to provide sealing at the specified pressure and temperature ranges. Constructed from brass with nitrile seals, it accommodates a 3/8 in hose fitting size with female threads and includes an integrated tubular valve to control airflow. Meets the specified industrial interchange standard and has a maximum working pressure: 300 psi (at 70°F), as well as a maximum flow rate: 1,415.84 L/min. Temperature range (rated): -40°F to 250°F.
Key Features:
- - Application: Pneumatic
- - Material: Brass
- - Hose Fitting Gender: Female
- - Hose Fitting Size: 3/8 in
- - Connection Type: (Female) NPT, 3/8"-18 thread size
- - Coupling Component: Socket
- - Coupling Locking Type: Sleeve
- - Interchange Type: Industrial
- - Includes Valve: Yes (Tubular valve type)
- - Max. Working Pressure @ 70°F: 300 psi
- - Max. Flow Rate: 1,415.84 lpm
- - Seal Material: Nitrile
- - Overall Length: 2.31 in
- - Max. Outside Diameter: 1 1/16 in
- - Temperature Range: -40°F to 250°F
- - Barbed: No
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.10
- Package Width: 0.90
- Package Height: 0.90
- Package Weight: 0.30
