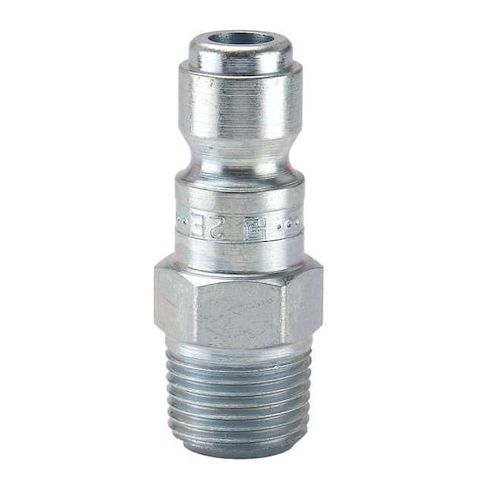

Coupler Plug, Steel, MNPT, 3/8 In. Pipe MPN:2C-E
The Parker Tru-Flate Automotive Quick Connect Plug is a reliable and efficient solution for pneumatic applications. Constructed from durable steel with a trivalent chrome finish, this coupling provides a sealed connection using a nitrile O-ring, rated for use with air lines up to 300 psi at 70°F. Ideal for use in automotive, industrial, and commercial settings, this plug features a sleeve locking mechanism for easy connection and disconnection without tools. With a maximum flow rate of 707.92 liters per minute and operating temperature range of -40°F to 250°F, this plug is perfect for applications such as air tool operation, pneumatic system maintenance, and equipment testing.
Top product features:
- Sleeve locking operation allows for connection and disconnection without tools.
- The coupling forms a sealed connection using a nitrile O-ring.
- The coupling is rated for use with air lines up to 300 psi at 70°F.
Top product applications:
- Pneumatic use with air lines and equipment
- Pneumatic applications
- Automotive applications
The PARKER - 2C-E is compatible with sleeve locking operation for connection and disconnection without tools. Constructed from steel with a trivalent chrome finish, this coupling is intended to form a sealed connection using a nitrile O-ring, and is rated for use with air lines up to 300 psi at 70°F. It has a specified maximum flow rate of 707.92 liters per minute and is specified for an operating temperature range of -40°F to 250°F. The product is the male plug half of the coupling, featuring NPT thread connections sized at 3/8"-18 and a hose fitting size of 3/8 inch.
Key Features:
- - Application: Pneumatic use with air lines and equipment
- - Coupling Size: 1/4 inch body size with 1/4 inch quick-connect port
- - Coupling Locking Type: Sleeve mechanism for connection locking type: sleeve mechanism
- - Material: Steel body with trivalent chrome finish for surface treatment
- - Seal Material: Nitrile O-ring providing fluid or pressure sealing
- - Maximum Working Pressure: 300 psi at 70°F
- - Maximum Flow Rate: 707.92 liters per minute
- - Operating Temperature Range: -40°F to 250°F
- - Overall Length: 1.75 inches
- - Maximum Outside Diameter: 13/16 inch
- - Thread Size: 3/8"-18 NPT male
- - Hose Fitting Gender: Male
- - Barbed: No
- - Interchange Type: Tru-Flate-Automotive standard
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.60
- Package Width: 0.60
- Package Height: 1.60
- Package Weight: 0.01
