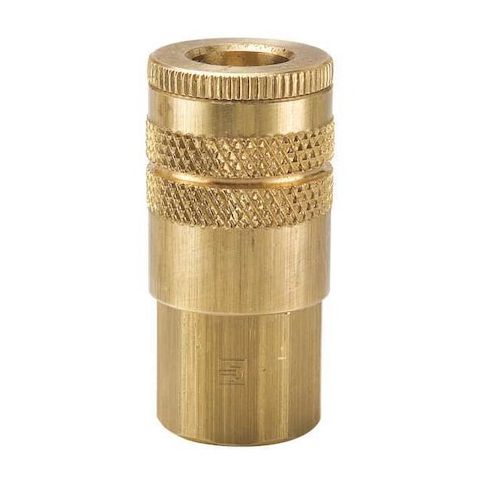

Coupler Body, Brass, FNPT, 1/8 In. Pipe MPN:B23A

• The PARKER - B23A is a quick-connect coupling for pneumatic applications

• enables hose/equipment connection and disconnection without tools. It features a female hose fitting with a 1/8" size and an NPT connection type sized at 1/4". Constructed of brass with nitrile seals, this coupling includes a tubular valve integrated into the socket component. It uses a sleeve locking mechanism to provide a sealed connection when installed in accordance with the applicable specifications and rated for operation within -40°F to 250°F, with a maximum working pressure: 300 psi (at 70°F).

  Key Features:


  • - Coupling Size: 1/4 in
  • - Hose Fitting Gender: Female
  • - Hose Fitting Size: 1/8 in
  • - Connection Type: NPT
  • - Coupling Component: Socket
  • - Coupling Locking Type: Sleeve
  • - Includes Valve: Yes
  • Valve Type: Tubular
  • - Material: Brass
  • - Seal Material: Nitrile
  • - Temperature Range: -40°F to 250°F
  • - Max Working Pressure @ 70°F: 300 psi
  • - Max Flow Rate: 707.92 liters per minute
  • - Overall Length: 1.81 in
  • - Max Outside Diameter: 0.937 in
  • - Interchange Type: Industrial
