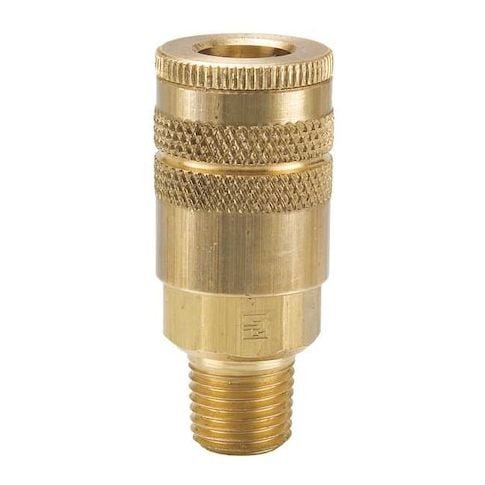

Quick Connect Hose Coupling, 1/4 in Body Size, 1/4 in Hose Fitting Size, Sleeve, Socket, 30E710 MPN:B22

The PARKER - B22 is a 1/4-inch quick connect hose coupling designed for pneumatic applications. It features a male hose fitting with a 1/4" NPT connection type and incorporates a sleeve locking mechanism for secure engagement. Made from brass and equipped with nitrile seals, this coupling includes a tubular valve to control airflow and offers a maximum working pressure of 300 psi at 70°F. The component is compatible with specified industrial interchange standards (as listed by the manufacturer) and supports a maximum flow rate of 707.92 liters per minute. Operating temperatures range from -40°F to 250°F, rated for operation within the specified temperature range (-40°F to 250°F).

Key Features:

• - Coupling Component: Socket
• - Body and Coupling Size: 1/4 in
• - Hose Fitting Gender: Male
• - Connection Type: 1/4" NPT
• - Includes Valve: Yes (Tubular)
• - Coupling Locking Type: Sleeve
• - Material: Brass with Nitrile seal
• - Max. Working Pressure: 300 psi @ 70°F
• - Max. Flow Rate: 707.92 lpm
• - Temperature Range: -40°F to 250°F
• - Overall Length: 2.06 in
• - Max. Outside Diameter: 15/16 in
• - Barbed: No
