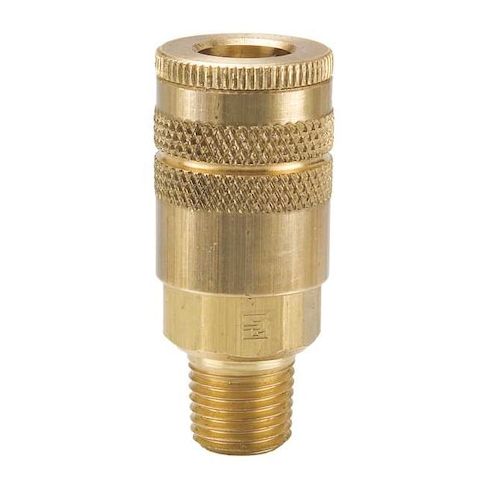

Coupler Body, Brass, MNPT, 1/8 In. Pipe MPN:B22A
The Parker B22A Coupler Body is a reliable and efficient solution for pneumatic air systems. This brass coupler features a tool-free connection/disconnection design with an industrial-style sleeve locking mechanism, ensuring quick and secure connections. The integrated tubular valve controls air flow when connected, making it ideal for applications requiring precise pressure management. With a maximum working pressure of 300 psi and a temperature range of -40°F to 250°F, this coupler is suitable for a variety of industries, including manufacturing, construction, and automotive. Its compact design and high-performance capabilities make it an excellent choice for demanding pneumatic applications.
Top product features:
- The PARKER B22A coupling provides a tool-free connection/disconnection design with an industrial-style sleeve locking mechanism.
- The coupling includes a tubular valve to control air flow when connected.
- The coupling is rated for operation within a temperature range of -40°F to 250°F.
Top product applications:
- Pneumatic
- Pneumatic Systems
- Air Systems
The PARKER - B22A is a hose coupling for rapid connection and disconnection of hoses/equipment. It provides a tool-free connection/disconnection design with an industrial-style sleeve locking mechanism. Made of brass with nitrile seals, this coupling includes a tubular valve to control air flow when connected. Intended for use with pneumatic air systems. Specified coupling size: 1/4 inch
- hose fitting: 1/8 inch male
- connection type: NPT (thread size: 1/8 in -27 NPT). The fitting is rated for operation within -40°F to 250°F and has a maximum working pressure of 300 psi at 70°F (as specified), with a maximum flow rate of 707.92 L/min (as specified).
Key Features:
- - Application: Pneumatic
- - Coupling Component: Socket
- - Coupling Locking Type: Sleeve
- - Material: Brass with nitrile seals
- - Includes integrated tubular valve
- - Thread Size: 1/8" -27 NPT
- - Coupling Size: 1/4 inch
- - Hose Fitting Gender: Male
- - Hose Fitting Size: 1/8 inch
- - Maximum Outside Diameter: 15/16 inch
- - Overall Length: 1.88 inches
- - Temperature Range: -40°F to 250°F
- - Maximum Working Pressure: 300 psi at 70°F
- - Maximum Flow Rate: 707.92 liters per minute
- - Interchange Type: Industrial
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 0.80
- Package Height: 0.80
- Package Weight: 0.20
