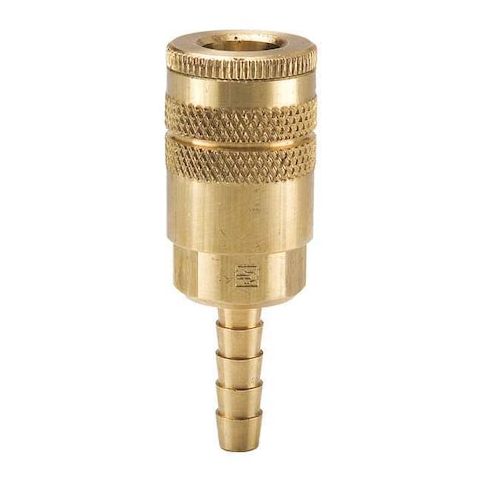

Coupler Body, Brass, Hose Barb, 25 cfm MPN:B20-3B

• The PARKER - B20-3B is a hose coupling with a sleeve locking mechanism for supports connection and disconnection using the sleeve locking mechanism (no separate hand tool required). It includes a valve with a tubular valve mechanism for flow control during hose changes. Rated for use with 1/4 in hose I.D. and rated to mate with 1/4 in industrial interchange fittings. Is rated for operation within the specified hose I.D. and fitting interchange size ranges, providing a connection intended to mate with specified hose I.D. and industrial interchange fittings (performance and leak tightness are dependent on installation and system conditions). The coupling is male gender with a hose barb connection, intended for pneumatic line assembly and maintenance.

  Key Features:


  • - Material: Brass
  • - Application: Pneumatic
  • - Connection Type: Hose Barb
  • - Hose Fitting Gender: Male
  • - Hose Fitting Size: 1/4 in
  • - Barb Size: 1/4 in
  • - For Hose I.D.: 1/4 in
  • - Coupling Component: Socket
  • - Coupling Size: 1/4 in
  • - Valve Included: Yes
  • Type: Tubular
  • - Interchange Type: Industrial
  • - Maximum Flow Rate: 707.92 lpm (under test conditions per manufacturer specifications)
  • - Maximum Working Pressure: 300 psi at 70°F (per manufacturer specifications)
  • - Seal Material: Nitrile
  • - Rated Temperature Range: -40°F to 250°F (per manufacturer specifications)
  • - Overall Length: 2.50 in
  • - Max. Outside Diameter: 15/16 in
